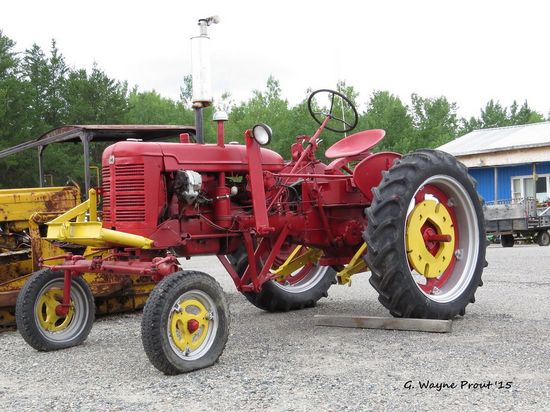

Farmall Super FC
Contents:
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| Brakes: | differential mechanical contracting band |
| Cab: | Open operator station. |
| Transmission: | 4-speed unsynchronized gear |
Hydraulics | |
| Type: | IH Touch Control |
Power Take-off (PTO) | |
| Rear RPM: | 540 |
Engine Detail | |
| International Harvester C-123 | |
| gasoline | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 123 ci 2.0 L |
| Bore/Stroke: | 3.125x4.00 inches 79 x 102 mm |
| Coolant capacity: | 13 qts 12.3 L |
| Sparkplug: | Chamption 15-A |
| AC-85S | |
| Sparkplug gap: | 0.025 inches 0.635 mm |
| Intake valve clearance: | 0.014 inches 0.356 mm (hot) |
| Exhaust valve clearance: | 0.014 inches 0.356 mm (hot) |
Transmission | |
| Type: | unsynchronized gear |
| Gears: | 4 forward and 1 reverse |
| Clutch: | 9-inch dry disc |
| Oil capacity: | 20 qts 18.9 L |
| Oil type: | SAE 90 |
Dimensions | |
| Wheelbase: | 91.5 inches 232 cm |
| Length: | 129.5 inches 328 cm |
| Width: | 78 inches 198 cm (axles) |
| Height (steering wheel): | 72.5 inches 184 cm |
| Height (exhaust): | 83.125 inches 211 cm |
| Clearance (rear axle): | 22.5 inches 57 cm |
| Front tread: | 59.25 to 83.25 inches 150 to 211 cm |
| Rear tread: | 48 to 69 inches 121 to 175 cm (wheels in) |
| Rear tread: | 56 to 78 inches 142 to 198 cm (wheels out) |
