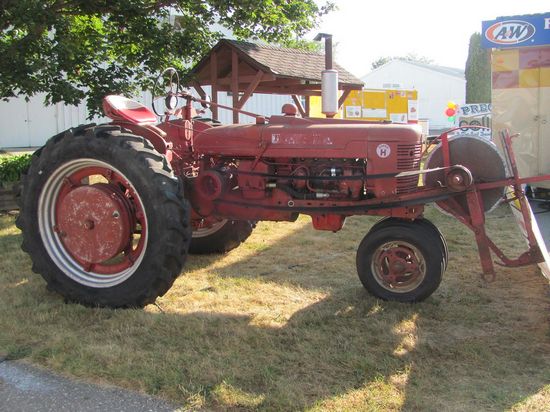

Farmall Super H
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Farmall (a part of International Harvester) |
| Type: | Row-Crop tractor |
| Total built: | 28,784 |
| Original price: | $2,100 (1954) |
Farmall Super H Power | |
| Drawbar (claimed): | 22 hp 16.4 kW |
| PTO (claimed): | 29 hp 21.6 kW |
| Drawbar (tested): | 30.69 hp 22.9 kW |
| Belt (tested): | 33.40 hp 24.9 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| Brakes: | mechanical disc |
| Cab: | Open operator station |
| Transmission: | 5-speed sliding gear |
Power Take-off (PTO) | |
| Rear RPM: | 540 |
Super H Serial Numbers | |
| Location: | Left side of clutch housing |
| 1953: | 501 |
| 1954: | 22202 |
Engine Detail | |
| International Harvester C164 | |
| gasoline | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 164 ci 2.7 L |
| Bore/Stroke: | 3.50x4.25 inches 89 x 108 mm |
| Compression: | 6.1:1 |
| Rated RPM: | 1650 |
| Firing order: | 1-3-4-2 |
| Starter volts: | 6 |
| Coolant capacity: | 16.5 qts 15.6 L |
| Sparkplug gap: | 0.025 inches 0.635 mm |
| Point gap: | 0.020 inches 0.508 mm |
| Intake valve clearance: | 0.017 inches 0.432 mm hot |
| Exhaust valve clearance: | 0.017 inches 0.432 mm hot |
Transmission | |
| Type: | sliding gear |
| Gears: | 5 forward and 1 reverse |
| Clutch: | dry disc |
Dimensions | |
| Wheelbase: | 89.25 inches 226 cm |
| Length: | 133 inches 337 cm |
| Width: | 75.5 inches 191 cm |
| 100 inches 254 cm (long-axle) | |
| Height: | 85 inches 215 cm |
| Weight: | 3,875 lbs 1757 kg |
| Ballasted weight: | 6,701 lbs 3039 kg |
| Front tread: | 8.1 to inches 20 to 0 cm |
| Rear tread: | 48 to 88 inches 121 to 223 cm |
