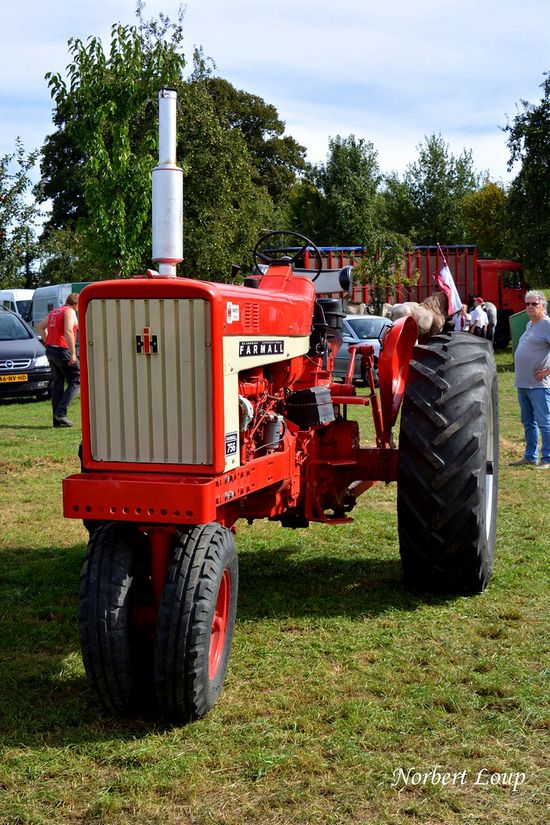

Farmall 756
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Farmall (a part of International Harvester) |
| Type: | Row-Crop tractor |
| The Farmall 756 was not tested at Nebraska, the tests for the Farmall 706 were used. | |
Variants | |
| utility chassis | |
| 756 Custom: | economy model |
Farmall 756 Power | |
| Drawbar (claimed): | 68 hp 50.7 kW |
| PTO (claimed): | 76.5 hp 57.0 kW |
| Drawbar (tested): | 67.46 hp 50.3 kW |
| PTO (tested): | 76.56 hp 57.1 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD (optional) | |
| Steering: | hydrostatic power |
| Brakes: | independent hydraulic disc |
| Cab: | Cab optional with heat and A/C |
| Transmissions: | 8-speed |
| 16-speed | |
Tractor hitch | |
| Rear Type: | 2 |
| Type: | IH Fast Hitch |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 1000 |
| 540/1000 | |
| Engine RPM: | 540@2100 1000@2100 |
756 Serial Numbers | |
| Location: | Clutch housing, left side. |
| 1967 (Farmall): | 7501 |
| 1968 (Farmall): | 9904 |
| 1969 (Farmall): | 14125 |
| 1970 (Farmall): | 17832 |
| 1971 (Farmall): | 18374 |
| 1967 (IH): | 7501 |
| 1968 (IH): | 7672 |
| 1969 (IH): | 8164 |
| 1970 (IH): | 8284 |
| 1971 (IH): | 8427 |
Electrical | |
| Charging system: | alternator |
| Charging amps: | 55 |
| Batteries: | 1 (gas/LPG) |
| 2 (diesel) | |
| Battery volts: | 12 (gas/LPG) |
| 6 (diesel) | |
| Battery AH: | 60 (gas/LPG) |
| 130 (diesel) | |
Engine Detail | |
| International Harvester D-310 | |
| diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 310 ci 5.1 L |
| Bore/Stroke: | 3.875x4.375 inches 98 x 111 mm |
| Air cleaner: | dual dry elements |
| Compression: | 16:1 |
| Rated RPM: | 2300 |
| Starter volts: | 12 |
| Oil capacity: | 12 qts 11.4 L |
| Coolant capacity: | 23.5 qts 22.2 L |
Dimensions | |
| Wheelbase: | 105 inches 266 cm |
| Length: | 164 inches 416 cm |
| Width: | 92 inches 233 cm |
| Height (steering wheel): | 82 inches 208 cm |
| Shiping weight: | 8,350 lbs 3787 kg (diesel) |
