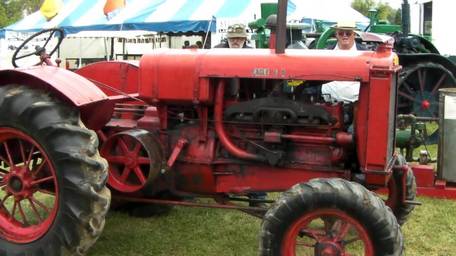

Eagle Manufacturing 6A

Production: 1930 - 1937
Type: Standard-tread Tractors

Contents:

Production

Manufacturer:Eagle Manufacturing
Type:Standard-tread tractor
Factory:Appleton, Wisconsin, USA

Eagle Manufacturing 6A Power

Drawbar (claimed):22 hp 16.4 kW
Belt (claimed):37 hp 27.6 kW
Plows:3-4 (14-inch)
Drawbar (tested):29.52 hp 22.0 kW
Belt (tested):40.36 hp 30.1 kW

Mechanical

Chassis:4x2 2WD
Final drives:spur gear
Steering:manual
Cab:Open operator station.
Transmission:3-speed gear

Engine Detail

Hercules
gasoline
6-cylinder 12-valve
liquid-cooled
Displacement:339 ci 5.6 L
Bore/Stroke:4.00x4.50 inches 102 x 114 mm
Fuel system:Zenith carburetor
Rated RPM:1416

Transmission

Type:gear
Gears:3 forward and 1 reverse
Clutch:dry disc

Dimensions

Length:134 inches 340 cm
Width:70 inches 177 cm
Height:61 inches 154 cm
Weight:5000 lbs 2268 kg
