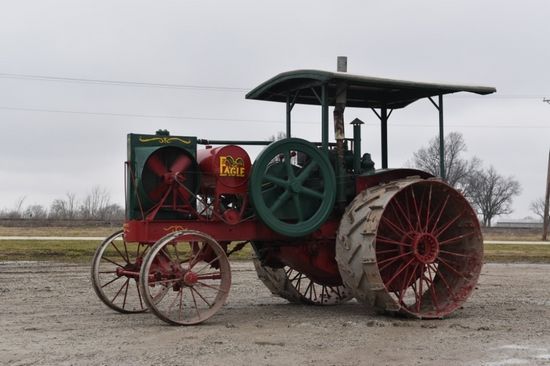

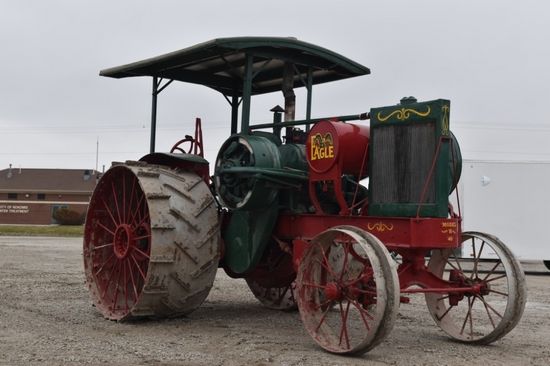

Eagle Manufacturing H 20-40

Production: 1922 - 1930

Production
Manufacturer:	Eagle Manufacturing
Type:	Standard-tread tractor
Factory:	Appleton, Wisconsin, USA

Eagle Manufacturing H 20-40 Power
Drawbar (claimed):	20 hp 14.9 kW
Belt (claimed):	40 hp 29.8 kW

Mechanical
Chassis:	4x2 2WD
Final drives:	spur gear
Steering:	manual
Cab:	Open operator station.
Transmission:	2-speed gear

Engine Detail
Eagle Manufacturing
kerosene
2-cylinder 4-valve
liquid-cooled
Displacement:	1005 ci 16.5 L
Bore/Stroke:	8.00x10.00 inches 203 x 254 mm
Fuel system:	Schebler carburetor
Rated RPM:	450
Starter type:	hand-crank

Transmission
Type:	gear
Gears:	2 forward and 1 reverse

Dimensions
Length:	147 inches 373 cm
Width:	77 inches 195 cm
Height:	80 inches 203 cm
Weight:	7840 lbs 3556 kg
