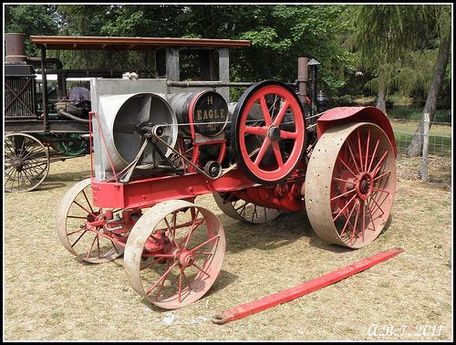

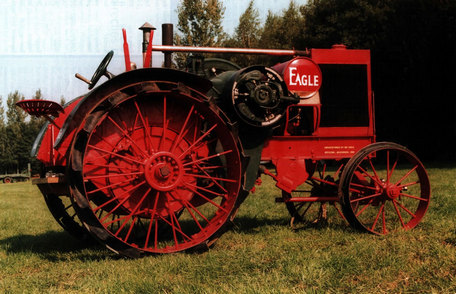

Eagle Manufacturing H 16-30

Production: 1922 - 1930

Production
Manufacturer:	Eagle Manufacturing
Type:	Standard-tread tractor
Factory:	Appleton, Wisconsin, USA

Eagle Manufacturing H 16-30 Power
Drawbar (claimed):	16 hp 11.9 kW
Belt (claimed):	30 hp 22.4 kW
Plows:	4 (14-inch)

Mechanical
Chassis:	4x2 2WD
Final drives:	spur gear
Steering:	manual
Cab:	Open operator station.
Transmission:	2-speed gear

Engine Detail
Eagle Manufacturing
kerosene
2-cylinder 4-valve
liquid-cooled
Displacement:	804 ci 13.2 L
Bore/Stroke:	8.00x8.00 inches 203 x 203 mm
Fuel system:	Schebler carburetor
Rated RPM:	450
Starter type:	hand-crank

Transmission
Type:	gear
Gears:	2 forward and 1 reverse

Dimensions
Length:	141 inches 358 cm
Width:	70 inches 177 cm
Height:	78 inches 198 cm
Weight:	7100 lbs 3220 kg
