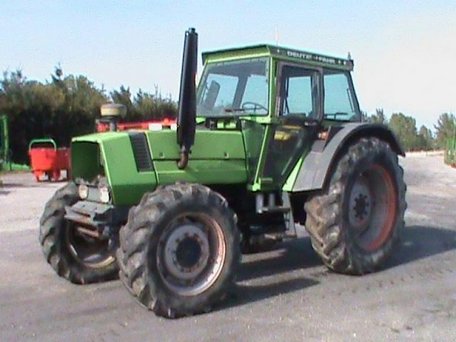

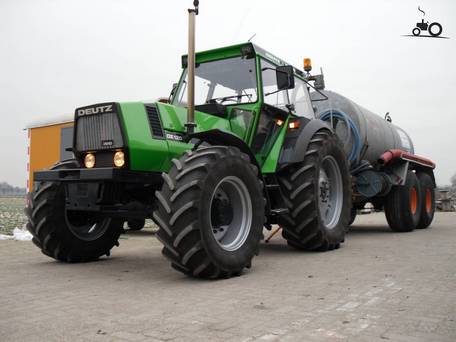

Deutz-Fahr DX 120
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Deutz-Fahr |
| Type: | Row-Crop tractor |
Deutz-Fahr DX 120 Power | |
| PTO (claimed): | 110 hp 82.0 kW |
| Drawbar (tested): | 92.86 hp 69.2 kW |
| PTO (tested): | 111.29 hp 83.0 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Final drives: | bull gear |
| Steering: | power |
| Brakes: | hydraulic disc |
| Cab: | Cab standard with air-conditioning. |
| Transmission: | 15-speed synchronized |
Hydraulics | |
| Pump flow: | 14.8 gpm 56.0 lpm |
Tractor hitch | |
| Rear Type: | II |
| Rear lift: | 11466 lbs 5200 kg |
Power Take-off (PTO) | |
| Rear RPM: | 540/1000 |
Electrical | |
| Ground: | negative |
| Battery volts: | 12 |
Engine Detail | |
| Deutz | |
| diesel | |
| 6-cylinder | |
| air-cooled | |
| Displacement: | 373.9 ci 6.1 L |
| Bore/Stroke: | 4.02x4.92 inches 102 x 125 mm |
| Compression: | 17:1 |
| Rated RPM: | 2300 |
| Starter volts: | 12 |
| Oil capacity: | 15.9 qts 15.0 L |
Transmission | |
| Type: | synchronized |
| Gears: | 15 forward and 5 reverse |
| Clutch: | dry disc |
| Oil capacity: | 50.7 qts 48.0 L |
| Five gears (1-5) in three ranges (low, medium, high). | |
Dimensions | |
| Wheelbase: | 105.8 inches 268 cm |
| Length: | 176.8 inches 449 cm |
| Height: | 108.3 inches 275 cm |
| Weight: | 10804 lbs 4900 kg |
