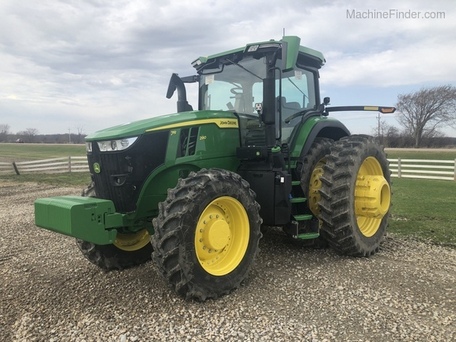

Deere 7R 290
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Row-Crop tractor |
| Factory: | Waterloo, Iowa, USA |
| Original price: | $301,491 (2020 ) |
John Deere 7R 290 Power | |
| Engine (gross): | 290 hp 216.3 kW |
| Engine (max): | 319 hp 237.9 kW |
| PTO (claimed): | 242 hp 180.5 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Final drives: | inboard planetary |
| Differential lock: | electro-hydraulic rear |
| electro-hydraulic front*Optional | |
| Steering: | power |
| Cab: | Cab standard with air-conditioning. |
| Transmissions: | 23-speed full power shift |
| infinitely variable transmission | |
Capacity | |
| Fuel: | 122 gal 461.8 L (e23) |
| 135 gal 511.0 L (IVT) | |
| Exhaust fluid (DEF): | 6.9 gal 26.1 L |
| Hydraulic system: | 17.2 gal 65.1 L |
| 22.5 gal 85.2 L *Optional | |
Hydraulics | |
| Type: | closed-center pressure flow compensated |
| Capacity: | 17.2 gal 65.1 L |
| 22.5 gal 85.2 L *Optional | |
| Pressure: | 2958 psi 204.0 bar |
| Rear valves: | 4 to 6 |
| Front valves: | 0 to 1 |
| Pump flow: | 43 gpm 162.8 lpm |
| 59 gpm 223.3 lpm *Optional | |
| SCV flow: | 35 gpm 132.5 lpm (rear) |
| 33 gpm 124.9 lpm (front) | |
Tractor hitch | |
| Rear Type: | III/IIIN |
| Control: | electro-hydraulic draft sensing |
| Rear lift (at 24"/610mm): | 15200 lbs 6894 kg |
| 17300 lbs 7847 kg *Optional with 120mm rear axle. | |
| Front Hitch: | IIIN |
| Front lift (at ends): | 7690 lbs 3488 kg |
| Front lift (at 24"/610mm): | 6994 lbs 3172 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 1000 (1.75) |
| Engine RPM: | 540@1950 1000@1950 540E@1750 1000E@1750 |
| Front PTO: | independent*Optional |
| Clutch: | 1000:1940 |
| Front RPM: | 1000 (1.375) |
| 1000 (1.75) | |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 210 |
| 250*Optional | |
| Batteries: | 2 |
| Battery CCA: | 925 |
| Battery volts: | 12 |
| Battery Group: | 31 |
Engine Detail | |
| John Deere | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 549 ci 9.0 L |
| Bore/Stroke: | 4.66x5.35 inches 118 x 136 mm |
| Emissions: | Tier IV |
| Rated Power (ECE R120): | 290 hp 216.3 kW |
| Maximum Power (ECE R120): | 319 hp 237.9 kW |
| Fuel system: | electronic high-pressure common rail |
| Compression: | 16.0:1 |
| Starter: | electric |
| Starter volts: | 12 |
Dimensions | |
| Wheelbase: | 115.2 inches 292 cm |
| Length: | 218 inches 553 cm |
| Clearance (front axle): | 19.5 inches 49 cm |
| Rear axle: | Rack-and-pinion: 4.33 by 118.5 inches 109 by 3009 mm |
| Rear axle: | Rack-and-pinion: 4.33 by 100.4 inches 109 by 2550 mm |
| Rear axle: | Rack-and-pinion: 4.33 by 110.5 inches 109 by 2806 mm |
| Rear axle: | Rack-and-pinion: 4.72 by 100.4 inches 119 by 2550 mm |
| Rear axle: | Rack-and-pinion: 4.72 by 118.5 inches 119 by 3009 mm |
| Front tread: | 60 to 88 inches 152 to 223 cm |
