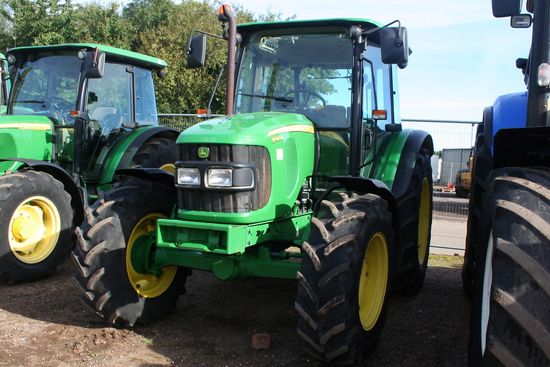

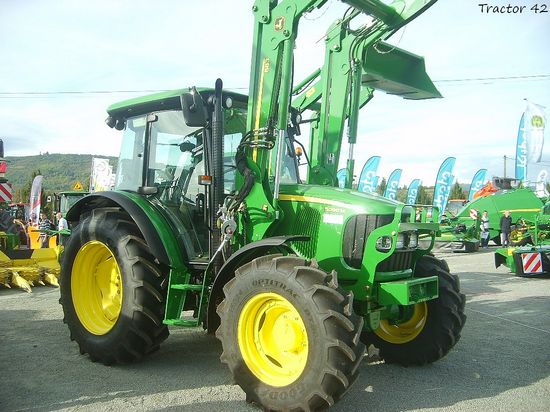

Deere 5090M
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Utility tractor |
| Factory: | Augusta, Georgia, USA |
| Original price: | $64,481 (2021 ) |
John Deere 5090M Power | |
| Engine (gross): | 89.2 hp 66.5 kW |
| PTO (claimed): | 75 hp 55.9 kW |
| PTO (tested): | 83.74 hp 62.4 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Final drives: | inboard planetary |
| Differential lock: | electro-hydraulic |
| Steering: | power |
| Brakes: | hydraulic wet disc |
| Cab: | Isolated open operator station with foldable two-post ROPS. Optional premium open station features extended fenders and integral work lights. Standard and premium cabs available with air-conditioning. |
| Transmissions: | 12-speed partially synchronized |
| 16-speed power shuttle | |
| 32-speed two-speed power shift | |
Hydraulics | |
| Type: | open center |
| Pump flow: | 18.4 gpm 69.6 lpm |
| Total flow: | 24.7 gpm 93.5 lpm |
| Steering flow: | 6.3 gpm 23.8 lpm |
Tractor hitch | |
| Rear Type: | II/I |
| Control: | lower-link draft sensing |
| Rear lift (at 24"/610mm): | 5159 lbs 2340 kg |
| 5954 lbs 2700 kg *Optional | |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | electro-hydraulic |
| Rear RPM: | 540/540E |
| 540/540E/1000*Optional | |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Battery volts: | 12 |
Engine Detail | |
| John Deere 4045PWL | |
| turbocharged aftercooled diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 276 ci 4.5 L |
| Bore/Stroke: | 4.19x5.00 inches 106 x 127 mm |
| Emissions: | Tier 4 |
| Emission control: | diesel oxidation catalyst (DOC) and selective catalyst reduction (SCR) |
| Rated Power (EC 97/98): | 89.2 hp 66.5 kW |
| Rated RPM: | 2100 |
| Starter: | electric |
| Starter volts: | 12 |
Dimensions | |
| Wheelbase: | 92.5 inches 234 cm |
| Length: | 149.5 inches 379 cm |
| Height (ROPS): | 102.1 inches 259 cm |
| Height (cab): | 102.9 inches 261 cm |
