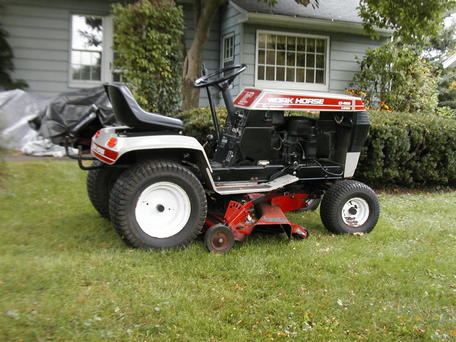

Wheel Horse LT-832 Work Horse

Production: 1982 - 1983

Production
Manufacturer:	Wheel Horse
Type:	Lawn tractor
Factory:	South Bend, Indiana, USA

Mechanical
Chassis:	4x2 2WD
Steering:	manual
Cab:	Open operator station.
Transmission:	3-speed gear

Capacity
Fuel:	1.5 gal 5.7 L

Power Take-off (PTO)
Front PTO:	independent
Clutch:	manual

LT-832 Serial Numbers
Location:	Right side of console, ahead of PTO lever.
1982: (A2-083201) 1983: (A2-083202)

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	3

Engine Detail
Briggs & Stratton 191707
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement:	318 cc 19.44 ci
Bore/Stroke:	3.00x2.75 inches 76 x 70 mm
Power (gross):	8 hp 6.0 kW
Rated RPM:	3600
Starter volts:	12
Oil capacity:	1.125 qts 1.1 L
Sparkplug gap:	0.030 inches 0.762 mm
Point gap:	0.020 inches 0.508 mm

Transmission
Transmission:	Peerless 601-001
Type:	belt-driven gear
Gears:	3 forward and 1 reverse

Dimensions
Wheelbase:	45.5 inches 115 cm
Length:	66 inches 167 cm
Height:	36.5 inches 92 cm
Weight:	388 lbs 175 kg
