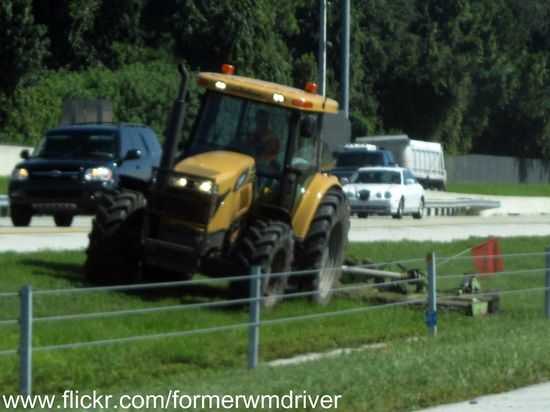

Challenger MT475B
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | Challenger (a part of AGCO) |
| Type: | Utility tractor |
| Factory: | Beauvais, France |
| Original price: | $65,785 (2009 2WD ) |
| Original price: | $73,066 (2009 4WD ) |
| The largest tractor in the MT400B series, the MT475B was added in 2008 when the rest of the line was upgraded to EPA Tier 3 engines. | |
Challenger MT475B Power | |
| Engine (gross): | 120 hp 89.5 kW |
| PTO (claimed): | 100 hp 74.6 kW |
| Drawbar (tested): | 85.3 hp 63.6 kW |
| PTO (tested): | 124.3 hp 92.7 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Final drives: | inboard planetary |
| Differential lock: | electro-hydraulic |
| Steering: | power |
| Brakes: | hydraulic wet disc |
| Trailer brakes: | hydraulic*Optional |
| Cab: | Cab standard with air-conditioning. |
| Transmission: | 16-speed four speed power shift |
Hydraulics | |
| Type: | open center |
| closed center*Optional | |
| Valves: | 2 to 4 |
| SCV flow: | 26 gpm 98.4 lpm (open) |
| 29 gpm 109.8 lpm (closed) | |
| 15 gpm 56.8 lpm *Optional for open center. | |
Tractor hitch | |
| Rear Type: | II |
| Control: | lower-link draft sensing |
| Rear lift (at 24"/610mm): | 9,189 lbs 4168 kg |
| Front Hitch: | optional |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 |
| Front PTO: | independent*Optional |
| Front RPM: | 1000 (1.375) |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 80 |
| 120*Optional | |
| Battery CCA: | 775 |
| Battery volts: | 12 |
Engine Detail | |
| Caterpillar C6.6 | |
| turbocharged diesel | |
| 6-cylinder 24-valve | |
| liquid-cooled | |
| Displacement: | 402.8 ci 6.6 L |
| Bore/Stroke: | 4.134x5.00 inches 105 x 127 mm |
| Emissions: | Tier III |
| Power (gross): | 120 hp 89.5 kW |
| Fuel system: | electronic high pressure common rail |
| Air cleaner: | dry |
| Rated RPM: | 2200 |
| Starter: | electric |
| Starter volts: | 12 |
Transmission | |
| Transmission: | AutoPower IV |
| Type: | four speed power shift |
| Gears: | 16 forward and reverse |
| Clutch: | wet disc |
| Four power shift gears in four ranges. | |
Dimensions | |
| Wheelbase: | 111 inches 281 cm |
| Length: | 189.7 inches 481 cm |
| Width: | 79.3 inches 201 cm |
| Height (cab): | 110.2 inches 279 cm |
| 2WD Weight: | 11195 lbs 5078 kg |
| 4WD Weight: | 11905 lbs 5400 kg |
| Front tread: | 57.3 to 85.2 inches 145 to 216 cm |
