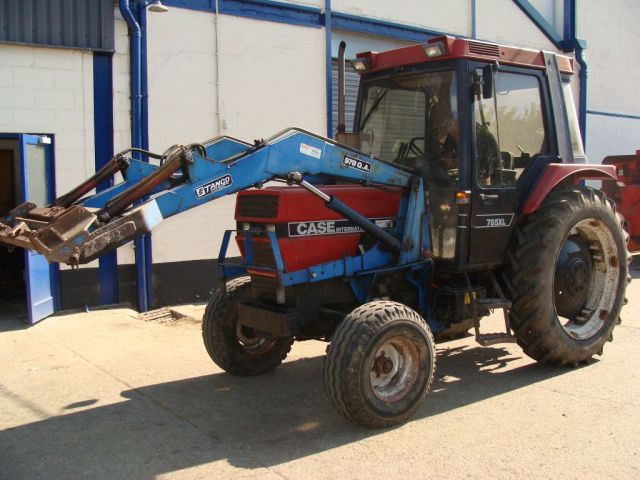

Case IH 785

Production: 1985 - 1990
Type: Utility Tractors

Contents:

Production

Manufacturer:Case IH
Type:Utility tractor
Factory:Doncaster, England

Case IH 785 Power

Engine:77 hp 57.4 kW
PTO (claimed):69 hp 51.5 kW

Mechanical

Chassis:4x2 2WD
4x4 MFWD 4WD (optional)
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post ROPS. Cab available in the 795 XL version.
Transmission:16-speed

Power Take-off (PTO)

Rear RPM:540/1000

Engine Detail

Case IH D-246
diesel
4-cylinder
liquid-cooled
Displacement:246.4 ci 4.0 L
Bore/Stroke:3.937x5.059 inches 100 x 128 mm
Power:77 hp 57.4 kW
Fuel system:direct injection
Rated RPM:2300
Torque:188.8 lb-ft 256.0 Nm
Torque RPM:1600

Transmission

Gears:16 forward and 8 reverse

Dimensions

2WD Wheelbase:88.2 inches 224 cm
4WD Wheelbase:85.4 inches 216 cm
Length:147.5 inches 374 cm
Height (cab):104.3 inches 264 cm
2WD Weight:6,376 lbs 2892 kg
4WD Weight:7,480 lbs 3392 kg
