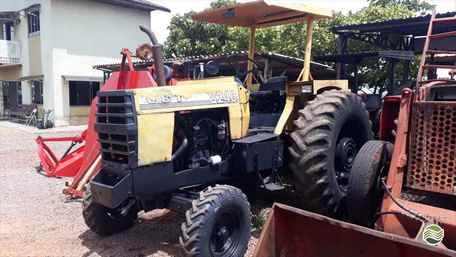

CBT 8240

Production: 1984 - 1988

Production
Manufacturer:	CBT
Factory:	Brazil

CBT 8240 Power
Engine:	80 hp 59.7 kW

Mechanical
Chassis:	4x2 2WD
Steering:	hydrostatic power
Brakes:	hydraulic disc
Cab:	Open operator station.
Transmissions:	6-speed
4-speed

Capacity
Hydraulic system:	10.6 gal 40.1 L
Steering:	1.85 qts 1.8 L

Hydraulics
Capacity:	10.6 gal 40.1 L
Steering cap.:	1.85 qts 1.8 L

Tractor hitch
Rear Type:	II
Rear lift (at 24"/610mm):	3,307 lbs 1500 kg

Power Take-off (PTO)
Rear RPM:	540

Electrical
Charging system:	alternator
Charging amps:	30
Charging volts:	14
Batteries:	2
Battery volts:	6
Battery AH:	95

Dimensions
Wheelbase:	82.68 inches 210 cm
Length:	157.5 inches 400 cm
Width:	79.76 inches 202 cm
Height:	107.9 inches 274 cm
Operating weight:	8,400 lbs 3810 kg
Ballasted weight:	10,550 lbs 4785 kg
Front tread:	55.9 to 75.6 inches 141 to 192 cm
Rear tread:	55.1 to 83 inches 139 to 210 cm
