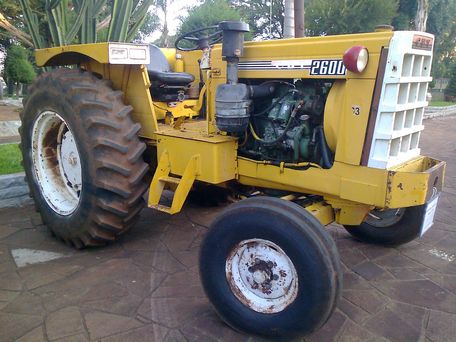

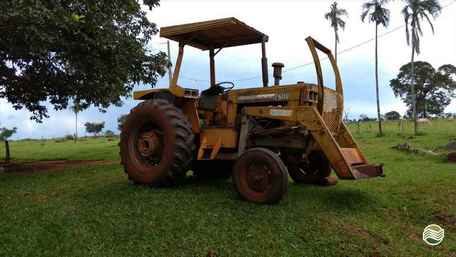

CBT 2600

Production
Manufacturer:	CBT
Factory:	Brazil

CBT 2600 Power
PTO (claimed):	92.1 hp 68.7 kW

Mechanical
Chassis:	4x2 2WD
Steering:	hydrostatic power
Brakes:	hydraulic shoe
Cab:	Open operator station
Transmission:	6-speed

Capacity
Fuel:	40.4 gal 152.9 L
Hydraulic system:	15 gal 56.8 L

Hydraulics
Capacity:	15 gal 56.8 L

Tractor hitch
Rear Type:	II
Rear lift (at 24"/610mm):	4,409 lbs 1999 kg

Power Take-off (PTO)
Rear RPM:	543

Electrical
Charging system:	alternator
Charging amps:	30
Charging volts:	14
Batteries:	2
Battery volts:	6
Battery AH:	137

Engine Detail
Mercedes-Benz OM-352
diesel
6-cylinder
liquid-cooled
Displacement:	346.3 ci 5.7 L
Bore/Stroke:	3.819x5.039 inches 97 x 128 mm
Air cleaner:	oil bath
Compression:	17:1
Rated RPM:	2200
Torque:	260.4 lb-ft 353.1 Nm
Torque RPM:	1600
Starter volts:	12
Oil capacity:	17.44 qts 16.5 L
Coolant capacity:	21.13 qts 20.0 L

Transmission
Gears:	6 forward and 2 reverse
Clutch:	13-inch dry disc
Oil capacity:	32 qts 30.3 L

Dimensions
Wheelbase:	85.4 inches 216 cm
Length:	173.2 inches 439 cm
Width:	85.8 inches 217 cm
Height:	104.3 inches 264 cm
Operating weight:	10,930 lbs 4957 kg
Ballasted weight:	14,050 lbs 6373 kg
Clearance (front axle):	15 inches 38 cm
Clearance (rear axle):	29.9 inches 75 cm
Clearance (drawbar):	19.7 inches 50 cm
Front tread:	66.9 to 82.7 inches 169 to 210 cm
Rear tread:	66.9 to 82.7 inches 169 to 210 cm
