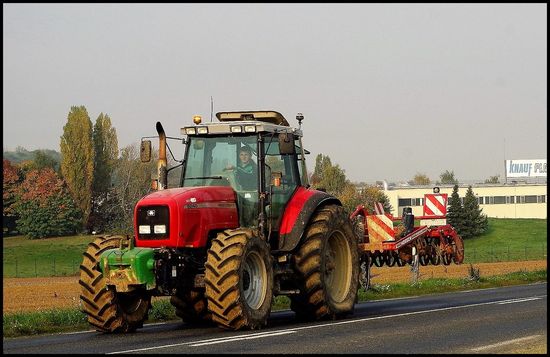

Massey Ferguson 8240

Production: 1999 - 2003

Production
Manufacturer:	Massey Ferguson
Type:	Row-Crop tractor
Factory:	France
Original price:	$79,500

Massey Ferguson 8240 Power
PTO (claimed):	145 hp 108.1 kW
Drawbar (tested):	141.1 hp 105.2 kW
PTO (tested):	155.2 hp 115.7 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Brakes:	independent hydraulic wet disc
Cab:	Cab standard
Transmissions:	32-speed four-range power shift
18-speed full power shift

Capacity
Fuel:	103 gal 389.9 L
Hydraulic system:	35 gal 132.5 L

Hydraulics
Type:	pressure flow compensated (PFC)
Capacity:	35 gal 132.5 L
Valves:	3
Pump flow:	27.7 gpm 104.8 lpm

Tractor hitch
Rear Type:	III
Rear lift:	14000 lbs 6350 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Sisu
turbocharged intercooled diesel
6-cylinder
liquid-cooled
Displacement:	402.5 ci 6.6 L
Bore/Stroke:	4.251x4.724 inches 108 x 120 mm
Air cleaner:	dual paper elements
Compression:	16.5:1
Rated RPM:	2200
Starter volts:	12

Dimensions
Wheelbase:	108 inches 274 cm
Operating weight:	15,390 lbs 6980 kg (2WD)
16,305 lbs 7395 kg (4WD)
