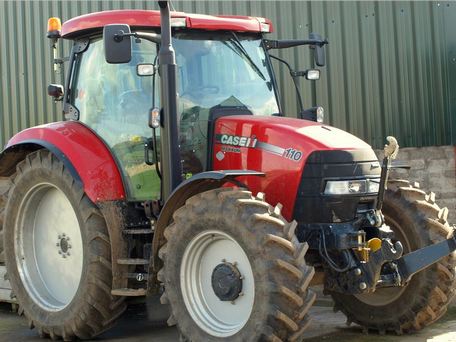

Case IH Maxxum 110
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Case IH |
| Type: | Row-Crop tractor |
| Factory: | Basildon, England |
| Original price: | $51,434 (2WD ROPS 2011) |
| $84,877 (PRO 2011) | |
Variants | |
| 110 PRO: | 4WD, deluxe cab, PFC hydraulics |
Case IH Maxxum 110 Power | |
| Engine: | 110 hp 82.0 kW |
| PTO (claimed): | 90 hp 67.1 kW |
| Drawbar (tested): | 82.3 hp 61.4 kW |
| PTO (tested): | 108.5 hp 80.9 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD (optional) | |
| Steering: | hydrostatic power |
| Brakes: | hydraulic wet disc |
| Trailer brakes: | hydraulic optional |
| Cab: | Cab optional. Deluxe cab standard on PRO model |
| Transmissions: | 12-speed mechanical shuttle |
| 24-speed partial power shift | |
| 16-speed partial power shift | |
| 17-speed partial power shift | |
Hydraulics | |
| Type: | open center |
| closed center PFC (110 PRO) | |
| Valves: | 2 to 4 |
| Pump flow: | 16.6 gpm 62.8 lpm |
| 26.5 gpm 100.3 lpm (PFC) | |
| Total flow: | 27.1 gpm 102.6 lpm |
| 37 gpm 140.0 lpm (PFC) | |
| Steering flow: | 10.5 gpm 39.7 lpm |
Tractor hitch | |
| Rear Type: | 2 |
| 2/3N (110 PRO) | |
| Control: | mechanical draft control |
| electronic draft control (110 PRO) | |
| Rear lift: | 7,509 lbs 3406 kg |
| 8,813 lbs 3997 kg (optional) | |
| 9,620 lbs 4363 kg (110 PRO) | |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 120 |
| Battery CCA: | 960 |
| Battery volts: | 12 |
Engine Detail | |
| FPT | |
| turbocharged aftercooled diesel | |
| 4-cylinder 8-valve | |
| liquid-cooled | |
| Displacement: | 273 ci 4.5 L |
| Bore/Stroke: | 4.094x5.197 inches 104 x 132 mm |
| Emissions: | Tier 3 |
| Power: | 110 hp 82.0 kW |
| Fuel system: | mechanical injection |
| Air cleaner: | dual paper elments |
| Compression: | 17.5:1 |
| Rated RPM: | 2200 |
| Starter volts: | 12 |
Dimensions | |
| Wheelbase: | 93.3 inches 236 cm (2WD) |
| 94.9 inches 241 cm (4WD) | |
| Height: | 114.1 inches 289 cm |
