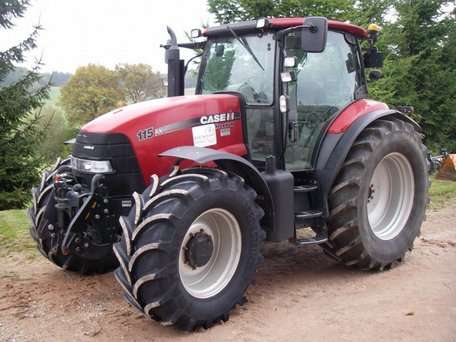

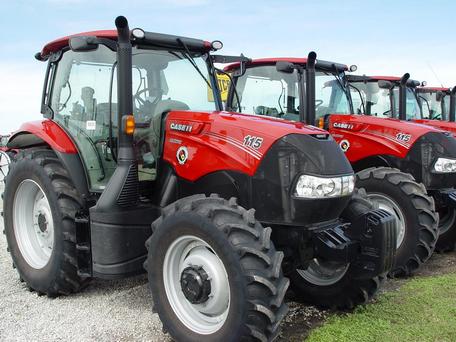

Case IH Maxxum 115
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Case IH |
| Type: | Row-Crop tractor |
| Factory: | Basildon, England |
| Original price: | $54,945 (2011 ) |
Case IH Maxxum 115 Power | |
| Engine: | 115 hp 85.8 kW |
| PTO (claimed): | 95 hp 70.8 kW |
| Drawbar (tested): | 93.3 hp 69.6 kW |
| PTO (tested): | 111.4 hp 83.1 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | hydrostatic power |
| Brakes: | hydraulic wet disc |
| Trailer brakes: | hydraulic optional |
| Cab: | Two-post ROPS. Cab optional. |
| Transmissions: | 12-speed mechanical shuttle |
| 24-speed partial power shift | |
| 16-speed partial power shift | |
Hydraulics | |
| Type: | open center |
| Valves: | 2 to 3 |
| Pump flow: | 16.6 gpm 62.8 lpm |
| Total flow: | 27.1 gpm 102.6 lpm |
| Steering flow: | 10.5 gpm 39.7 lpm |
Tractor hitch | |
| Rear Type: | 2 |
| Control: | mechanical draft control |
| Rear lift: | 7,509 lbs 3406 kg |
| 8,813 lbs 3997 kg (optional) | |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | electro-hydraulic wet disc |
| Rear RPM: | 540/1000 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 120 |
| Battery CCA: | 960 |
| Battery volts: | 12 |
Engine Detail | |
| FPT | |
| turbocharged aftercooled diesel | |
| 6-cylinder 12-valve | |
| liquid-cooled | |
| Displacement: | 411 ci 6.7 L |
| Bore/Stroke: | 4.094x5.197 inches 104 x 132 mm |
| Emissions: | Tier 3 |
| Power: | 115 hp 85.8 kW |
| Fuel system: | mechanical injection |
| Rated RPM: | 2200 |
| Starter volts: | 12 |
Dimensions | |
| Wheelbase: | 104.4 inches 265 cm (2WD) |
| 104.7 inches 265 cm (4WD) | |
| Height: | 114.1 inches 289 cm (ROPS) |
| 111 inches 281 cm (cab) | |
