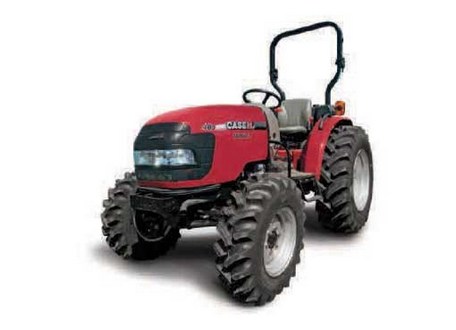

Case IH Farmall 40B

Production: 2012 - 2014

Production
Manufacturer:	Case IH
Type:	Compact Utility tractor
Original price:	$21,336 (2012 shuttle )
Original price:	$22,935 (2012 hydro )

Case IH Farmall 40B Power
Engine (gross):	41 hp 30.6 kW
Gear PTO (claimed):	34 hp 25.4 kW
Hydro PTO (claimed):	32 hp 23.9 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	mechanical rear
Steering:	hydrostatic power
Brakes:	wet disc
Cab:	Two-post foldable ROPS.
Transmissions:	16-speed partially synchronized
hydrostatic

Hydraulics
Type:	open center
Pump flow:	8.2 gpm 31.0 lpm
Gear Steering flow:	4.1 gpm 15.5 lpm
Hydro Steering flow:	5.5 gpm 20.8 lpm

Tractor hitch
Rear Type:	1
Control:	position control
Rear lift (at ends):	2,756 lbs 1250 kg
Rear lift (at 24"/610mm):	2,469 lbs 1119 kg
Drawbar:	two-position swinging drawbar

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	electro-hydraulic
Rear RPM:	540

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	50
Battery CCA:	660
Battery volts:	12
Battery AH:	80

Engine Detail
Mitsubishi S4QL
diesel
4-cylinder
liquid-cooled
Displacement:	153 ci 2.5 L
Power (gross):	41 hp 30.6 kW
Air cleaner:	dry
Pre-heating:	glow plugs
Rated RPM:	2600

Dimensions
Wheelbase:	69 inches 175 cm
Length:	121 inches 307 cm
Height (ROPS):	96 inches 243 cm
Weight:	3,725 lbs 1689 kg
Rear axle:	Flange
Front tread:	51.7 inches 131 cm
