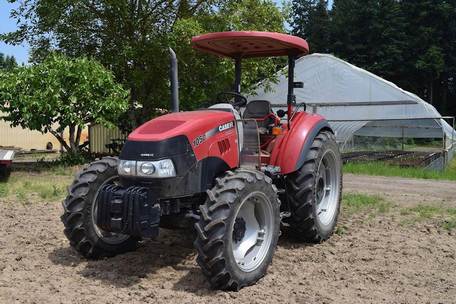

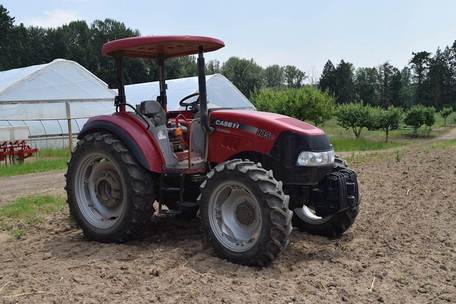

Case IH Farmall 105C
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | Case IH |
| Type: | Utility tractor |
Case IH Farmall 105C Power | |
| Engine: | 106 hp 79.0 kW |
| PTO (claimed): | 91 hp 67.9 kW |
| PTO (tested): | 94.5 hp 70.5 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Final drives: | inboard planetary |
| Differential lock: | mechanical rear |
| Steering: | power |
| ROPS Brakes: | mechanical wet disc |
| Cab Brakes: | hydraulic wet disc |
| Cab: | Two-post foldable ROPS. Cab optional with heat and air-conditioning. |
| Transmissions: | 12-speed mechanical shuttle |
| 12-speed power shuttle | |
| 20-speed creeper | |
Hydraulics | |
| Type: | open center |
| Valves: | 1 or 2 |
| Pump flow: | 12.9 gpm 48.8 lpm |
| 16.9 gpm 64.0 lpm *Optional | |
Tractor hitch | |
| Rear Type: | II |
| Control: | mechanical upper-link draft sensing |
| Rear lift (at 24"/610mm): | 5620 lbs 2549 kg |
| Drawbar: | swinging drawbar |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 (1.375) |
| 540/1000*Optional | |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 120 |
| ROPS Battery CCA: | 730 |
| Cab Battery CCA: | 800 |
| Battery volts: | 121 |
Engine Detail | |
| Fiat Powertrain Technologies (FPT) F5H | |
| turbocharged air-to-air aftercooled diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 207 ci 3.4 L |
| Bore/Stroke: | 3.90x4.33 inches 99 x 110 mm |
| Emissions: | Interim Tier 4 |
| Emission control: | cooled exhaust-gas recirculation (EGR) |
| Power: | 106 hp 79.0 kW |
| Fuel system: | electronic high-pressure common rail direct injection |
| Air cleaner: | dual dry element |
| Pre-heating: | grid heater |
| Rated RPM: | 2300 |
| Starter: | electric |
| Starter volts: | 12 |
Dimensions | |
| 4WD Wheelbase: | 89 inches 226 cm |
| Length: | 149 inches 378 cm |
| Width: | 83 inches 210 cm |
| Height (ROPS): | 103 inches 261 cm |
| Height (cab): | 100 inches 254 cm |
| 4WD Cab Weight: | 7937 lbs 3600 kg |
| Rear axle: | Flange axle |
| 2WD Front tread: | 60.2 to 79.9 inches 152 to 202 cm |
| 4WD Front tread: | 60.8 to 76.6 inches 154 to 194 cm |
| Rear tread: | 52.2 to 76.6 inches 132 to 194 cm |
