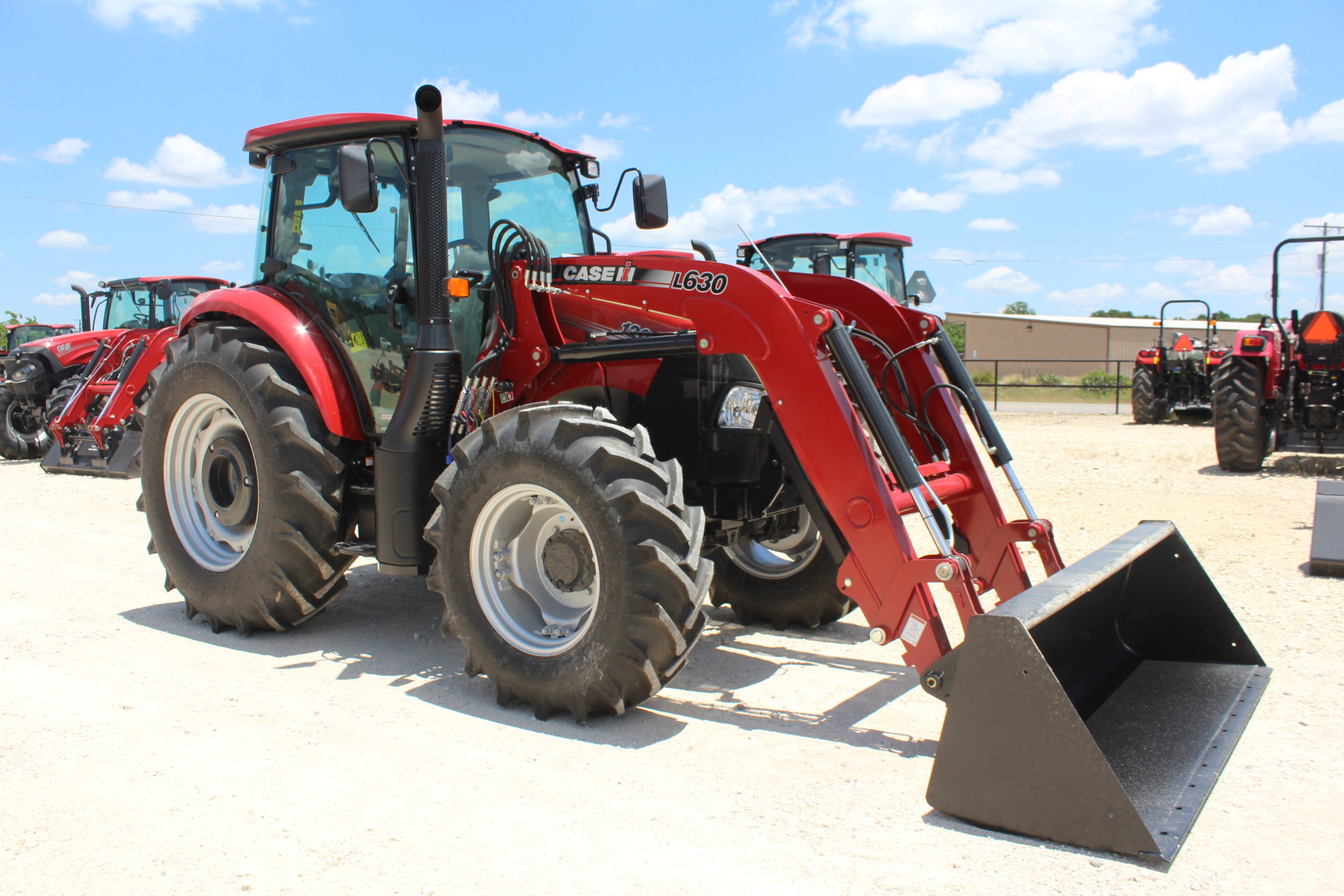

Case IH Farmall 120C
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | Case IH |
| Type: | Utility tractor |
| Original price: | $59,414 (2016 mech-shuttle ROPS 2WD ) |
| Original price: | $82,837 (2016 Hi-Lo Cab 4WD ) |
Case IH Farmall 120C Power | |
| Engine: | 117 hp 87.2 kW |
| PTO (claimed): | 99 hp 73.8 kW |
| Drawbar (tested): | 76 hp 56.7 kW |
| PTO (tested): | 106.1 hp 79.1 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Final drives: | inboard planetary |
| Steering: | power |
| Brakes: | wet disc |
| Cab: | Two-post ROPS. Cab optional with air-conditioning. |
| Transmissions: | 12-speed mechanical shuttle |
| 12-speed power shuttle | |
| 24-speed | |
Hydraulics | |
| Type: | open center |
| Valves: | 2 or 3 |
| Pump flow: | 16..9 gpm 60.6 lpm |
Tractor hitch | |
| Rear Type: | II/I |
| Control: | top link draft sensing |
| Rear lift (at 24"/610mm): | 4339 lbs 1968 kg |
| 5620 lbs 2549 kg *Optional | |
| Rear Arms: | telescopic link ends |
| Drawbar: | swinging extendable drawbar |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/540E |
| 540/1000*Optional | |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Battery volts: | 12 |
Engine Detail | |
| Fiat Powertrain Technologies (FPT) | |
| wastegate turbocharged and aftercooled | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 207 ci 3.4 L |
| Bore/Stroke: | 3.90x4.33 inches 99 x 110 mm |
| Emissions: | Tier 4 |
| Emission control: | selective catalytic reduction (SCR) with cooled exhaust-gas recirculation |
| Power: | 117 hp 87.2 kW |
| Fuel system: | high pressure common rail electronic direct injection |
| Starter: | electric |
| Starter volts: | 12 |
Dimensions | |
| 2WD Wheelbase: | 92.2 inches 234 cm |
| 4WD Wheelbase: | 90 inches 228 cm |
| 2WD Length: | 163.1 inches 414 cm |
| 4WD Length: | 160.1 inches 406 cm |
| Width: | 75.7 inches 192 cm |
| Height (ROPS): | 106.5 inches 270 cm |
| Height (cab): | 102.1 inches 259 cm |
| Rear axle: | Flange |
