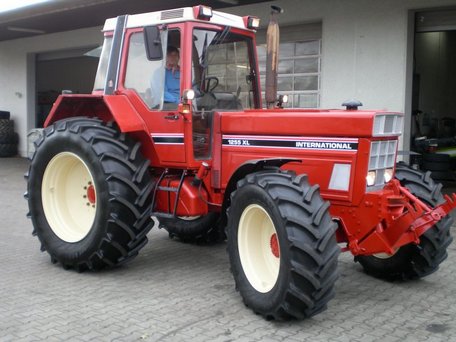

Case IH 1255 XL
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Case IH |
| Type: | Row-Crop tractor |
| Factory: | Neuss, Germany |
Case IH 1255 XL Power | |
| Engine: | 125 hp 93.2 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | hydrostatic power |
| Transmissions: | 12-speed fully synchronized |
| 20-speed fully synchronized | |
Capacity | |
| Fuel: | 52.8 gal 199.8 L |
| Front axle: | 9.5 qts 9.0 L |
Hydraulics | |
| Pressure: | 2488 psi 171.5 bar |
| Valves: | up to 2 |
| Pump flow: | 11 gpm 41.6 lpm |
Tractor hitch | |
| Rear Type: | III/II |
| Control: | position and draft control |
| Rear lift: | 10580 lbs 4799 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 55 |
| Battery volts: | 12 |
Engine Detail | |
| International Harvester DT-358 | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 358 ci 5.9 L |
| Bore/Stroke: | 3.875x5.0625 inches 98 x 129 mm |
| Power: | 125 hp 93.2 kW |
| Fuel system: | direct injection |
| Rated RPM: | 2200 |
| Torque: | 336 lb-ft 455.6 Nm |
| Torque RPM: | 1600 |
| Starter: | electric |
| Starter volts: | 12 |
| Oil capacity: | 13.2 qts 12.5 L |
| Coolant capacity: | 33.8 qts 32.0 L |
Dimensions | |
| Wheelbase: | 110.2 inches 279 cm |
| Length: | 189 inches 480 cm |
| Height (cab): | 115.7 inches 293 cm |
| 2WD Weight: | 11155 lbs 5059 kg |
| 4WD Weight: | 12521 lbs 5679 kg |
| 2WD Clearance (front axle): | 20.5 inches 52 cm |
| 4WD Clearance (front axle): | 18.5 inches 46 cm |
| 2WD Front tread: | 59.8 to 71.6 inches 151 to 181 cm |
| 4WD Front tread: | 68.5 to 76.4 inches 173 to 194 cm |
| Rear tread: | 71.6 to 83.6 inches 181 to 212 cm |
