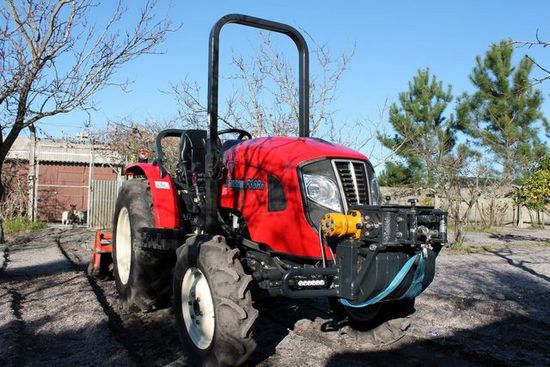

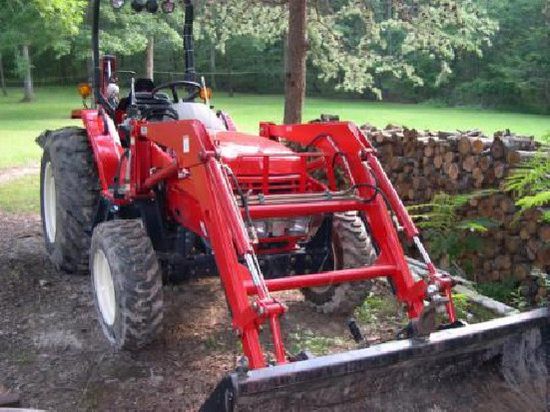

Branson 3520CX

Production: 2016

Production
Manufacturer:	Branson (a part of Kukje)
Type:	Compact Utility tractor
Factory:	South Korea

Branson 3520CX Power
Engine:	35 hp 26.1 kW
PTO (claimed):	29 hp 21.6 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Cab standard with air-conditioning.
Transmission:	12-speed sychronized shuttle

Hydraulics
Pump flow:	8.9 gpm 33.7 lpm
Steering flow:	4.8 gpm 18.2 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift:	3306 lbs 1499 kg
Rear Arms:	telescopic lower links

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/540E

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	70
Battery volts:	12

Engine Detail
Kukje A1700N2
diesel
3-cylinder
liquid-cooled
Displacement:	104.6 ci 1.7 L
Bore/Stroke:	3.46x3.70 inches 88 x 94 mm
Power:	35 hp 26.1 kW
Air cleaner:	dry dual element
Starter:	electric
Starter volts:	12

Transmission
Type:	sychronized shuttle
Gears:	12 forward and reverse
Clutch:	dry disc

Dimensions
Wheelbase:	70.9 inches 180 cm
Length:	130.6 inches 331 cm
Height (cab):	93 inches 236 cm
Weight:	4442 lbs 2014 kg
Ground clearance:	13.1 inches 33 cm
Front tread:	50.5 inches 128 cm
Rear tread:	43.6 to 60 inches 110 to 152 cm
