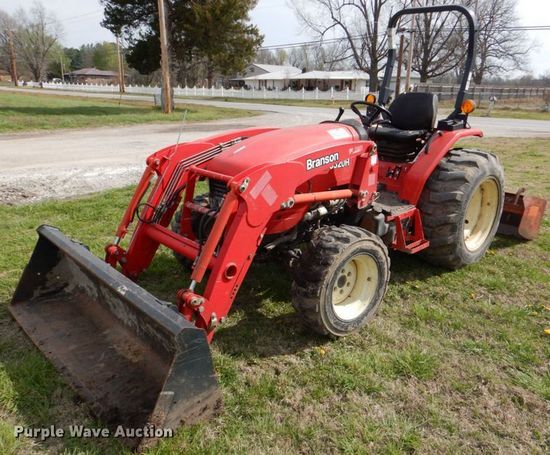

Branson 3520R
Type: Compact Utility Tractors
Contents:
Production | |
| Manufacturer: | Branson (a part of Kukje) |
| Type: | Compact Utility tractor |
Branson 3520R Power | |
| Engine: | 35 hp 26.1 kW |
| PTO (claimed): | 29 hp 21.6 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Steering: | hydrostatic power |
| Brakes: | wet disc |
| Cab: | Two-post foldable ROPS. |
| Transmission: | 12-speed syncro shuttle |
Hydraulics | |
| Type: | open center |
| Mid valves: | 2 |
| Pump flow: | 8.9 gpm 33.7 lpm |
| Steering flow: | 4.8 gpm 18.2 lpm |
Tractor hitch | |
| Rear Type: | I |
| Control: | position control |
| Rear lift: | 3306 lbs 1499 kg |
| Rear Arms: | telescopic lower arms |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/790 (1.375) |
3520R Serial Numbers | |
| Location: | Serial number plate on the front-right of the Branson 3520R tractor frame, above the front axle. |
Electrical | |
| Ground: | negative |
| Battery volts: | 12 |
Engine Detail | |
| Kukje A1700N2-R | |
| diesel | |
| 3-cylinder 6-valve | |
| liquid-cooled | |
| Displacement: | 104.6 ci 1.7 L |
| Bore/Stroke: | 3.465x3.701 inches 88 x 94 mm |
| Power: | 35 hp 26.1 kW |
| Fuel use: | 2.1 gal/hour 7.9 l/hour |
| Air cleaner: | dry |
| Pre-heating: | glow plugs |
| Compression: | 21.3:1 |
| Rated RPM: | 2600 |
| Starter: | electric |
| Starter volts: | 12 |
Transmission | |
| Type: | syncro shuttle |
| Gears: | 12 forward and reverse |
| Clutch: | dry disc |
Dimensions | |
| Wheelbase: | 70.9 inches 180 cm |
| Length: | 130 inches 330 cm |
| Width: | 64 inches 162 cm (min) |
| Height: | 97.9 inches 248 cm |
| Weight: | 4053 lbs 1838 kg |
| Ground clearance: | 12.7 inches 32 cm |
| Front tread: | 50.5 inches 128 cm |
| Rear tread: | 43.6 to 60 inches 110 to 152 cm |
