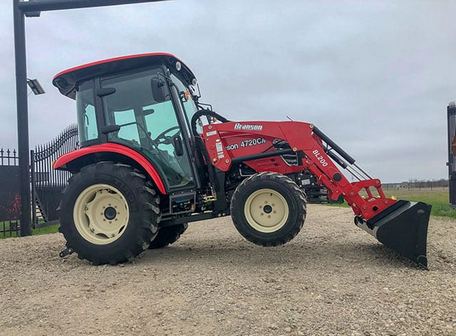

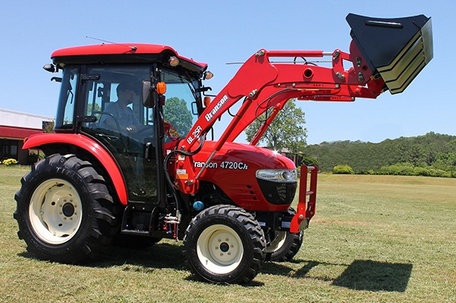

Branson 4720CH

Production: 2016

Production
Manufacturer:	Branson (a part of Kukje)
Type:	Compact Utility tractor
Factory:	South Korea

Branson 4720CH Power
Engine:	47 hp 35.0 kW
PTO (claimed):	42 hp 31.3 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Cab standard with air-conditioning.
Transmission:	hydrostatic

Hydraulics
Pump flow:	10.4 gpm 39.4 lpm
Steering flow:	5 gpm 18.9 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift:	3306 lbs 1499 kg
Rear Arms:	telescopic lower links

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/540E

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	70
Battery volts:	12

Engine Detail
Kukje A2300N2
diesel
4-cylinder
liquid-cooled
Displacement:	139.5 ci 2.3 L
Bore/Stroke:	3.46x3.70 inches 88 x 94 mm
Power:	47 hp 35.0 kW
Air cleaner:	dry dual element
Starter:	electric
Starter volts:	12

Transmission
Type:	hydrostatic
Gears:	infinite (3-range) forward and reverse

Dimensions
Wheelbase:	70.9 inches 180 cm
Length:	130.6 inches 331 cm
Height (cab):	93 inches 236 cm
Weight:	4442 lbs 2014 kg
Ground clearance:	13.1 inches 33 cm
Front tread:	50.5 inches 128 cm
Rear tread:	43.6 to 60 inches 110 to 152 cm
