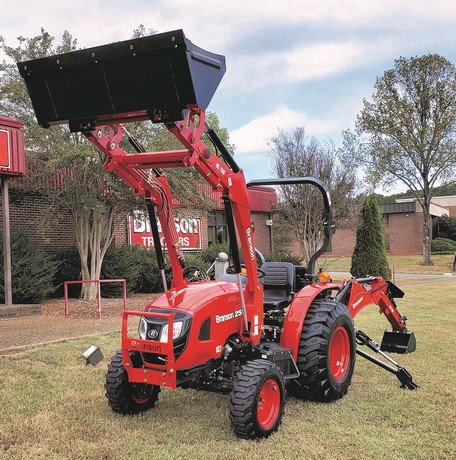

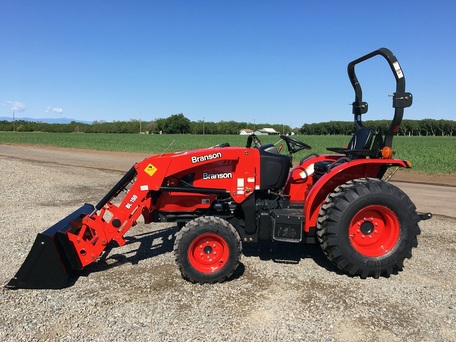

Branson 2515

Production: 2020

Production
Manufacturer:	Branson (a part of TYM)
Type:	Compact Utility tractor

Variants
2515H:	hydrostatic
2515R:	shuttle

Branson 2515 Power
Engine (gross):	24 hp 17.9 kW
PTO (claimed):	21 hp 15.7 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Two-post folding ROPS.
Transmissions:	12-speed sync shuttle
hydrostatic

Hydraulics
Pump flow:	7.5 gpm 28.4 lpm
Total flow:	11.5 gpm 43.5 lpm
Steering flow:	4 gpm 15.1 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift (at ends):	3306 lbs 1499 kg
Rear lift (at 24"/610mm):	2425 lbs 1099 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	wet disc
Rear RPM:	540 (1.375)

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	50
Battery volts:	12

Engine Detail
Kukje A1700N6
diesel
3-cylinder
liquid-cooled
Displacement:	104.6 ci 1.7 L
Bore/Stroke:	3.46x3.70 inches 88 x 94 mm
Emissions:	Tier IV
Power (gross):	24 hp 17.9 kW
Fuel system:	indirect injection
Air cleaner:	dry
Rated RPM:	2100
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	65.7 inches 166 cm
Length:	120.9 inches 307 cm
Width:	56.3 inches 143 cm
Height (ROPS):	104 inches 264 cm
Gear Weight:	2989 lbs 1355 kg
Hydro Weight:	2969 lbs 1346 kg
Ground clearance:	14.4 inches 36 cm
