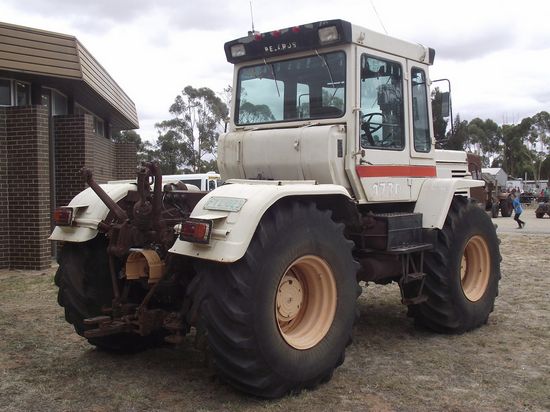

Belarus 1770

Production: 1985 - 1997

Production
Distributor:	Belarus
Manufacturer:	XTZ
Type:	Four-wheel Drive (4WD) tractor
Factory:	Kharkiv, Ukraine
Original price:	$44,000 (1997 )

Belarus 1770 Power
Engine:	185 hp 138.0 kW
Drawbar (claimed):	151 hp 112.6 kW
PTO (claimed):	171 hp 127.5 kW
Drawbar (tested):	148.11 hp 110.4 kW
PTO (tested):	167.6 hp 125.0 kW

Mechanical
Chassis:	4x4 articulated 4WD
Steering:	articulated hydraulic power
Brakes:	pneumatic shoe
Cab:	Cab standard.
Transmission:	12-speed four-speed power shift

Capacity
Fuel:	83.2 gal 314.9 L
Hydraulic system:	10.25 gal 38.8 L

Hydraulics
Type:	open center
Capacity:	10.25 gal 38.8 L
Pressure:	2275 psi 156.9 bar
Valves:	2
Pump flow:	28.2 gpm 106.7 lpm

Tractor hitch
Rear Type:	III
Rear lift:	12480 lbs 5660 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000
Engine RPM:	540@2025 1000@2050

Engine Detail
Belarus SMD-63
turbocharged diesel
6-cylinder
liquid-cooled V-6
Displacement:	558.4 ci 9.2 L
Bore/Stroke:	5.118x4.528 inches 130 x 115 mm
Power:	185 hp 138.0 kW
Fuel system:	direct injection
Compression:	15:1
Rated RPM:	2100
Starter volts:	24
Coolant capacity:	44 qts 41.6 L

Transmission
Type:	four-speed power shift
Gears:	12 forward and 4 reverse
Clutch:	pneumatic dry disc

Dimensions
Wheelbase:	112.6 inches 286 cm
Length:	241 inches 612 cm
Width:	94.5 inches 240 cm
Height:	124.6 inches 316 cm
Operating weight:	19585 lbs 8883 kg *Weight with single 23.1-26 tires.
Front tread:	73.2 inches 185 cm
Rear tread:	73.2 inches 185 cm
