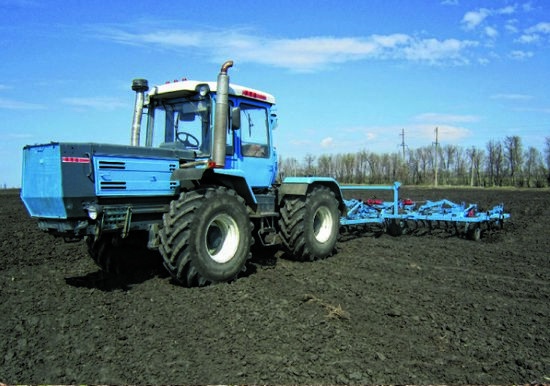

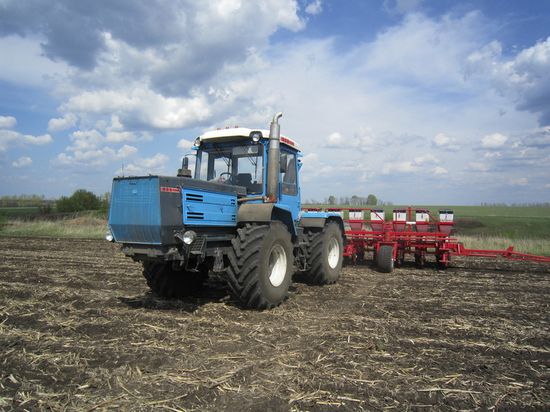

XTZ-17221

Production
Manufacturer:	XTZ
Type:	Four-wheel Drive (4WD) tractor
Factory:	Kharkiv, Ukraine

Variants
17021:	Deutz engine
17221:	YaMZ engine

XTZ XTZ-17221 Power
Engine:	180 hp 134.2 kW

Mechanical
Chassis:	4x4 articulated 4WD
Steering:	articulated power
Cab:	Cab standard with air-conditioning.
Transmission:	16-speed

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000

Engine Detail
YaMZ 236
diesel
6-cylinder
liquid-cooled V-6
Displacement:	680.4 ci 11.2 L
Bore/Stroke:	5.12x5.51 inches 130 x 140 mm
Power:	180 hp 134.2 kW
Rated RPM:	2100
Starter type:	electric

Transmission
Gears:	16 forward and 8 reverse
Clutch:	dry disc

Dimensions
Wheelbase:	112.6 inches 286 cm
Length:	252 inches 640 cm
Width:	96.9 inches 246 cm
Height (exhaust):	136.2 inches 345 cm
Weight:	19000 lbs 8618 kg
Ground clearance:	17.7 inches 44 cm
Front tread:	73.2 inches 185 cm
Rear tread:	73.2 inches 185 cm
