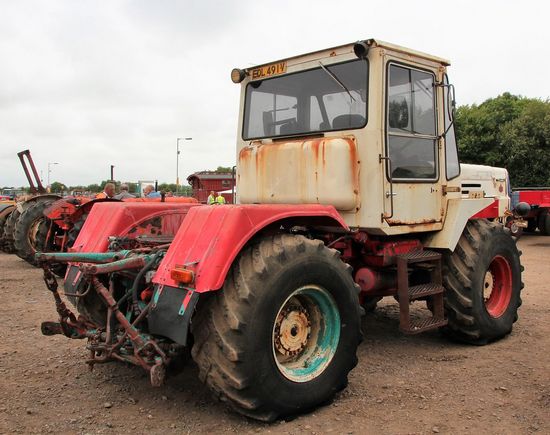

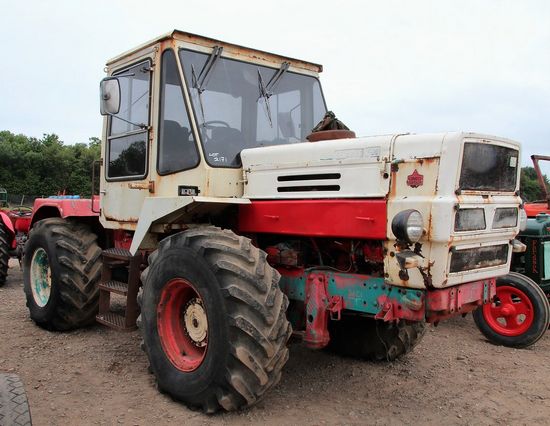

Belarus 1500

Production: 1977 - 1985

Production
Distributor:	Belarus
Manufacturer:	XTZ
Type:	Four-wheel Drive (4WD) tractor
Factory:	Kharkiv, Ukraine
Original price:	$37,000 (1985 )

Variants
T-150K:	European model designation

Belarus 1500 Power
Drawbar (claimed):	147 hp 109.6 kW
PTO (claimed):	168 hp 125.3 kW
Drawbar (tested):	147.03 hp 109.6 kW
PTO (tested):	168.76 hp 125.8 kW

Mechanical
Chassis:	4x4 articulated 4WD
Steering:	articulated hydraulic power
Brakes:	pneumatic shoe
Cab:	Cab standard.
Transmission:	12-speed partial power shift

Power Take-off (PTO)
Rear RPM:	540
1000

Engine Detail
Belarus CMD-62
turbocharged diesel
6-cylinder
liquid-cooled V-6
Displacement:	558 ci 9.1 L
Bore/Stroke:	5.118x4.528 inches 130 x 115 mm
Air cleaner:	dry
Compression:	15:1
Rated RPM:	2100
Starter type:	gasoline pony motor
Coolant capacity:	44 qts 41.6 L

Transmission
Type:	partial power shift
Gears:	12 forward and 4 reverse
Clutch:	dry disc

Dimensions
Wheelbase:	112.6 inches 286 cm
Length:	241 inches 612 cm
Width:	94.5 inches 240 cm
Height:	124.6 inches 316 cm
Operating weight:	18600 lbs 8436 kg
Ballasted weight:	19885 lbs 9019 kg
Front tread:	73.2 inches 185 cm
Rear tread:	73.2 inches 185 cm
