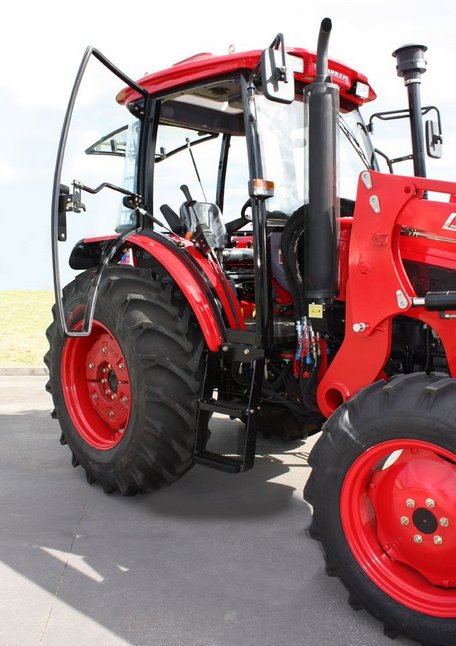

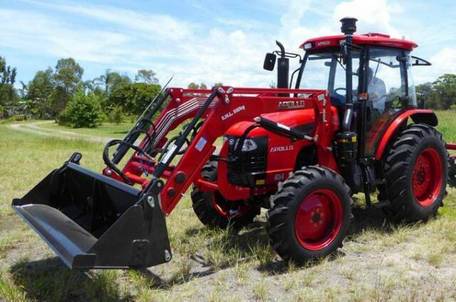

Apollo 854

Production: 2010

Production
Distributor:	Apollo
Manufacturer:	Changfa
Type:	Utility tractor
Factory:	China

Apollo 854 Power
Engine (gross):	85 hp 63.4 kW
PTO (claimed):	78 hp 58.2 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	dual plate wet disc
Cab:	Two-post foldable ROPS with canopy.
Transmission:	10-speed gear

Hydraulics
Valves:	2
Total flow:	11.6 gpm 43.9 lpm

Tractor hitch
Rear Type:	II
Control:	position control
Rear lift (at 24"/610mm):	3086 lbs 1399 kg

Power Take-off (PTO)
Rear RPM:	540/1000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	25
Charging volts:	14
Battery volts:	12
Battery AH:	80

Engine Detail
Changfa CF4C80T
diesel
4-cylinder
liquid-cooled
Displacement:	235.4 ci 3.9 L
Power (gross):	85 hp 63.4 kW
Fuel system:	direct injection
Rated RPM:	2200
Starter:	electric
Starter volts:	12

Transmission
Type:	gear
Gears:	10 forward and 2 reverse
Clutch:	304.8mm dry disc
Five gears (1-5) plus reverse (R) in two ranges (low/high).

Dimensions
Length:	224.4 inches 569 cm
Width:	78.7 inches 199 cm
Height (ROPS):	110.2 inches 279 cm
Weight:	10360 lbs 4699 kg (with loader)
Ground clearance:	15.35 inches 38 cm
