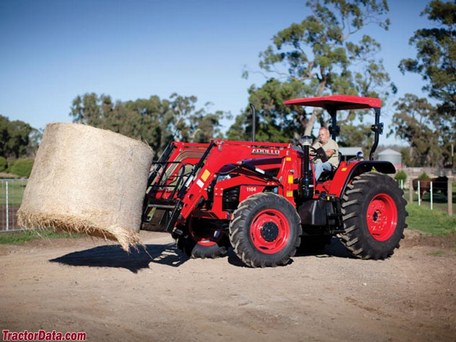

Apollo 1104

Production: 2012

Production
Distributor:	Apollo
Manufacturer:	Changfa
Type:	Utility tractor
Factory:	China

Apollo 1104 Power
Engine (gross):	110 hp 82.0 kW
PTO (claimed):	100 hp 74.6 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	dual plate wet disc
Cab:	Two-post foldable ROPS with canopy. Optional cab with air-conditioning.
Transmission:	10-speed gear

Hydraulics
Valves:	2
Total flow:	11.6 gpm 43.9 lpm

Tractor hitch
Rear Type:	II
Control:	position control
Rear lift (at 24"/610mm):	3086 lbs 1399 kg

Power Take-off (PTO)
Rear RPM:	540/1000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	25
Charging volts:	14
Battery volts:	12
Battery AH:	80

Engine Detail
Yuchai YC4A110Z-T20
diesel
4-cylinder
liquid-cooled
Displacement:	302.1 ci 5.0 L
Power (gross):	110 hp 82.0 kW
Fuel system:	direct injection
Rated RPM:	2200
Starter:	electric
Starter volts:	12

Transmission
Type:	gear
Gears:	10 forward and 2 reverse
Five gears (1-5) plus reverse (R) in two ranges (low/high).

Dimensions
Length:	224.4 inches 569 cm
Width:	82.6 inches 209 cm
Height (ROPS):	110.2 inches 279 cm
Height (cab):	109.4 inches 277 cm
Weight:	10710 lbs 4858 kg (ROPS with loader)
11240 lbs 5098 kg (Cab with loader)
Ground clearance:	15.35 inches 38 cm
