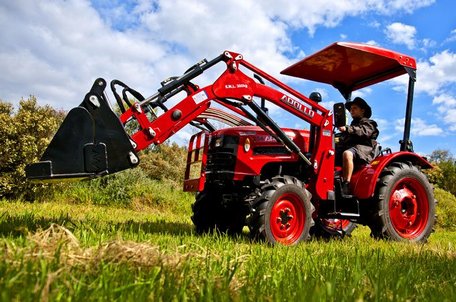

Apollo 254
Type: Compact Utility Tractors
Contents:
Production | |
| Distributor: | Apollo |
| Manufacturer: | Changfa |
| Type: | Compact Utility tractor |
| Factory: | China |
Apollo 254 Power | |
| Engine (gross): | 25 hp 18.6 kW |
| PTO (claimed): | 23 hp 17.2 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Steering: | power |
| Brakes: | dual plate wet disc |
| Cab: | Two-post foldable ROPS with canopy. |
| Transmission: | 9-speed gear |
Hydraulics | |
| Valves: | 2 |
| Total flow: | 8.7 gpm 32.9 lpm |
Tractor hitch | |
| Rear Type: | I |
| Control: | position control |
| Rear lift (at 24"/610mm): | 1323 lbs 600 kg |
Power Take-off (PTO) | |
| Rear RPM: | 540 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 25 |
| Charging volts: | 14 |
| Battery volts: | 12 |
| Battery AH: | 70 |
Engine Detail | |
| Changfa CF3B25T | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 93.5 ci 1.5 L |
| Power (gross): | 25 hp 18.6 kW |
| Fuel system: | direct injection |
| Rated RPM: | 2400 |
| Starter: | electric |
| Starter volts: | 12 |
Transmission | |
| Type: | gear |
| Gears: | 9 forward and 3 reverse |
| Clutch: | 203mm dry disc |
| Three speeds (I, II, III) in three ranges (L, M, H and R). | |
Dimensions | |
| Length: | 153.5 inches 389 cm |
| Width: | 56.7 inches 144 cm |
| Height (ROPS): | 91.3 inches 231 cm |
| Weight: | 3649 lbs 1655 kg (with loader) |
| Ground clearance: | 11 inches 27 cm |
