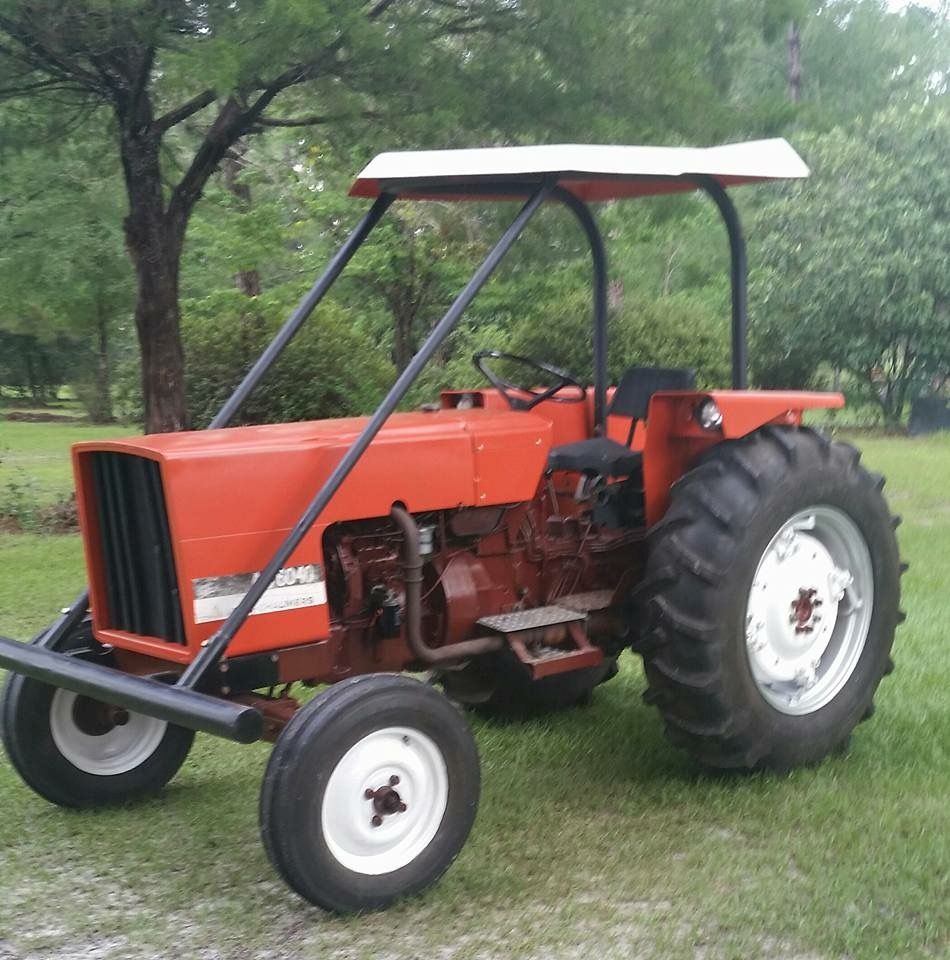

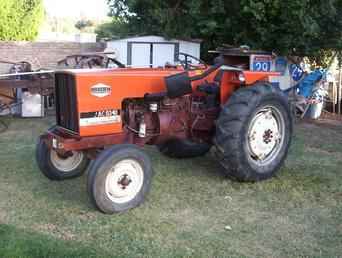

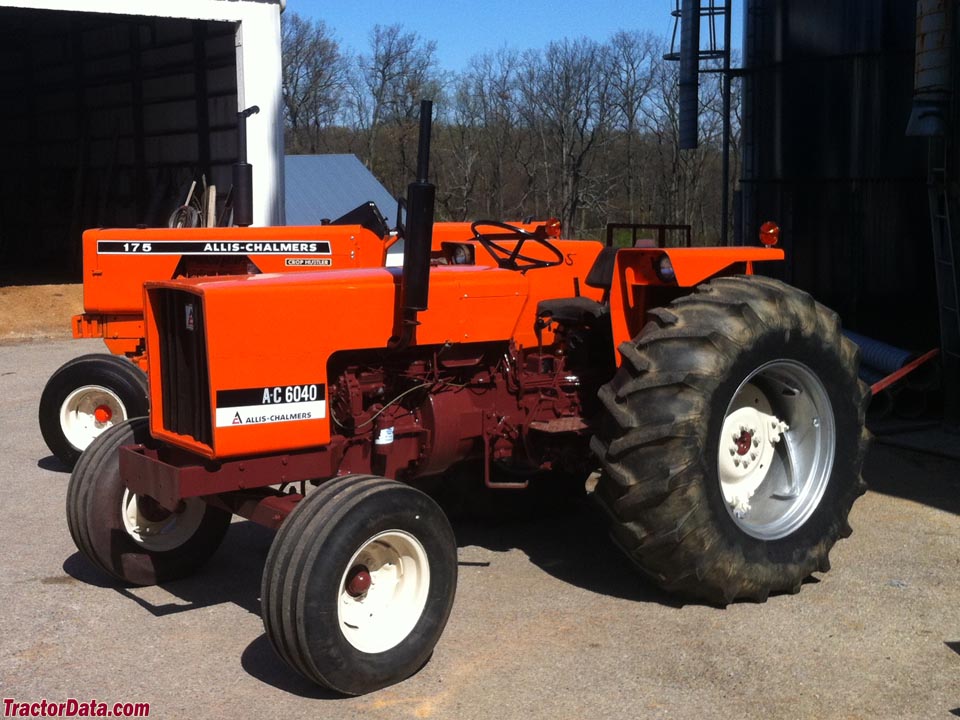

Allis Chalmers 6040

Production: 1974 - 1975

Production
Distributor:	Allis Chalmers
Manufacturer:	Renault
Factory:	France
Total built:	499
Original price:	$6,934

Allis Chalmers 6040 Power
Drawbar (claimed):	36.7 hp 27.4 kW
PTO (claimed):	40.36 hp 30.1 kW
Drawbar (tested):	36.71 hp 27.4 kW
PTO (tested):	40.36 hp 30.1 kW

Mechanical
Chassis:	4x2 2WD
Steering:	hydrostatic power
Brakes:	differential mechanical dry disc
Cab:	Open operator station.
Transmission:	10-speed partial synchronized

Hydraulics
Pressure:	2300 psi 158.6 bar
Pump flow:	6.7 gpm 25.4 lpm
Steering flow:	7.5 gpm 28.4 lpm
Steering press.:	1100 psi 75.8 bar

Tractor hitch
Rear Type:	II

Power Take-off (PTO)
Rear PTO:	live
Rear RPM:	540

Engine Detail
Perkins 3.152
diesel
3-cylinder
liquid-cooled
Displacement:	152.7 ci 2.5 L
Bore/Stroke:	3.60x5.00 inches 91 x 127 mm
Air cleaner:	paper element
Compression:	17.4:1
Rated RPM:	2250
Starter volts:	12

Transmission
Type:	partial synchronized
Gears:	10 forward and 2 reverse

Dimensions
Operating weight:	4,680 lbs 2122 kg
Ballasted weight:	6,070 lbs 2753 kg
