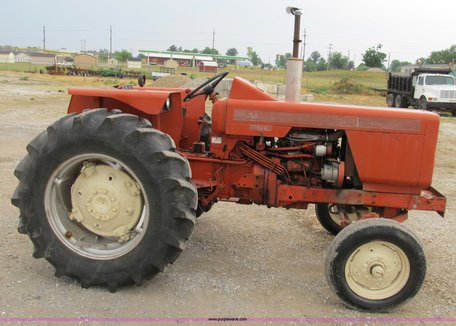

Allis Chalmers 160

Production: 1970 - 1975

Production
Distributor:	Allis Chalmers
Manufacturer:	Renault
Type:	Farm/Agricultural tractor
Factory:	France
Total built:	5,597 (total)
4,110 (One-Sixty)
1,487 (160)
Original price:	$6,215

Allis Chalmers 160 Power
Engine:	40 hp 29.8 kW
Drawbar (tested):	36.71 hp 27.4 kW
PTO (tested):	40.36 hp 30.1 kW

Mechanical
Chassis:	4x2 2WD
Steering:	hydrostatic power
manual (on basic models)
Brakes:	differential mechanical dry disc
Transmissions:	10-speed partial synchronized
6-speed

Capacity
Fuel:	13.5 gal 51.1 L
Hydraulic system:	7.25 gal 27.4 L

Hydraulics
Capacity:	7.25 gal 27.4 L
Pressure:	2300 psi 158.6 bar
Pump flow:	6.7 gpm 25.4 lpm
Steering flow:	7.5 gpm 28.4 lpm
Steering press.:	1100 psi 75.8 bar

Tractor hitch
Rear Type:	II

Power Take-off (PTO)
Rear PTO:	live
Rear RPM:	540

Electrical
Ground:	negative
Charging system:	Delco-Remy
Paris-Rhone
Battery volts:	12
Battery AH:	95

Engine Detail
Perkins AD 3.152
diesel
3-cylinder
liquid-cooled
Displacement:	152.7 ci 2.5 L
Bore/Stroke:	3.60x5.00 inches 91 x 127 mm
Power:	40 hp 29.8 kW
Air cleaner:	paper element
Compression:	18.5:1
Rated RPM:	2250
Firing order:	1-2-3
Starter volts:	12
Oil capacity:	6.5 qts 6.2 L
Coolant capacity:	8 qts 7.6 L
Intake valve clearance:	0.010 inches 0.254 mm (hot)
Exhaust valve clearance:	0.010 inches 0.254 mm (hot)

Dimensions
Wheelbase:	76 inches 193 cm
Length:	144 inches 365 cm
