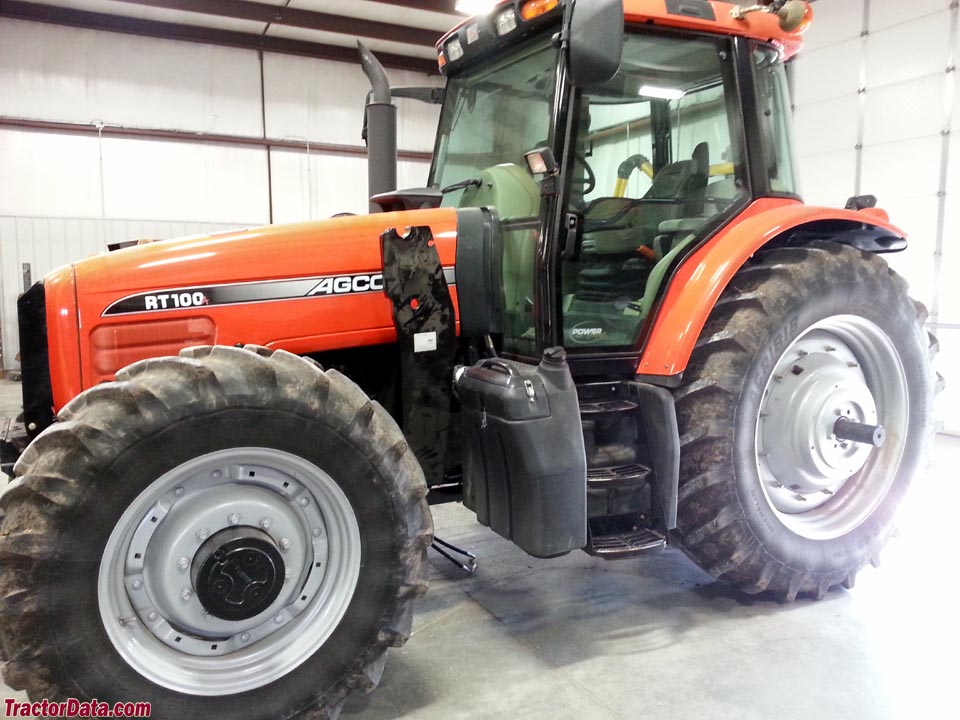

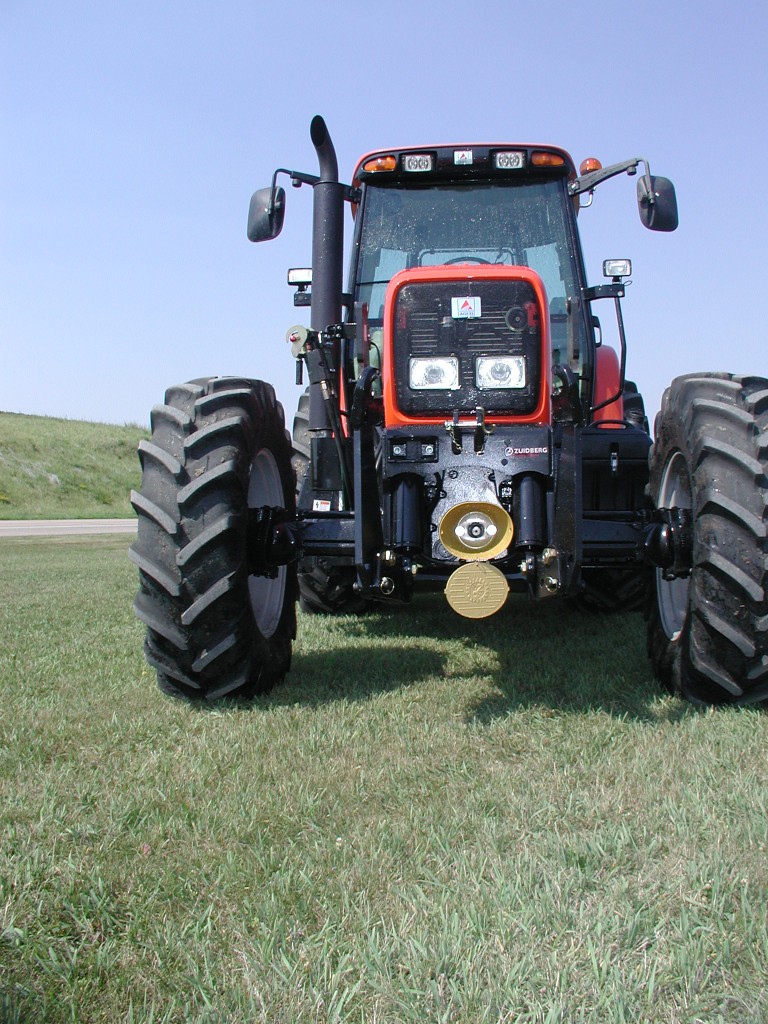

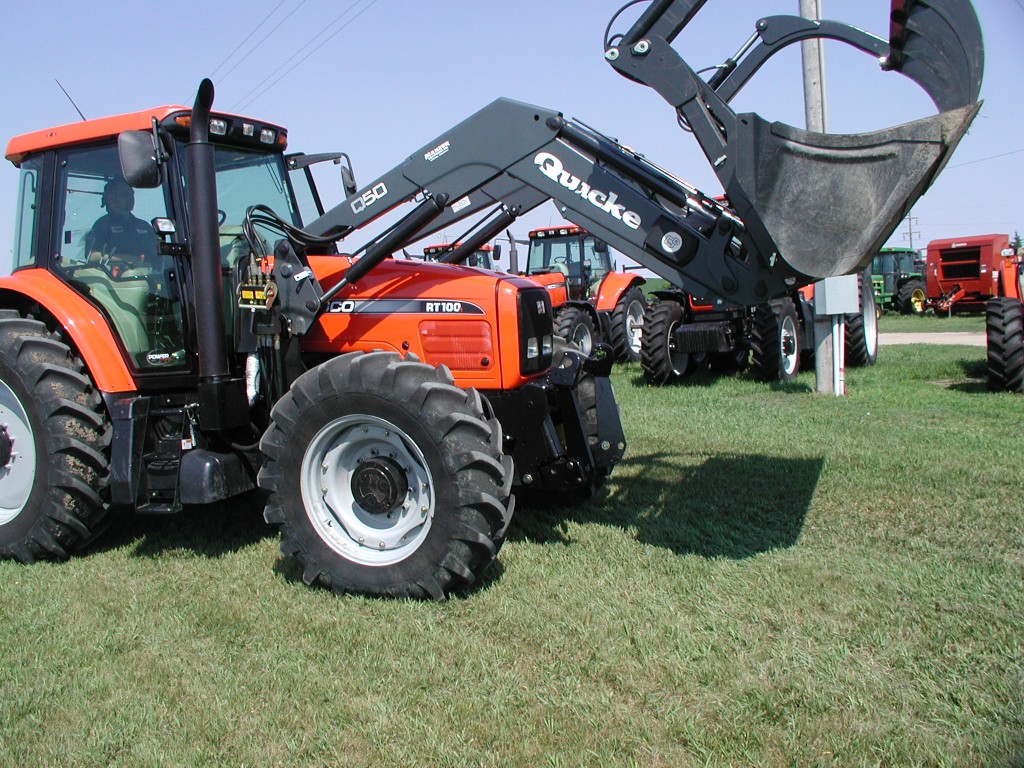

AGCO RT100A

Production: 2006 - 2007

Production
Manufacturer:	AGCO
Type:	Row-Crop tractor
Factory:	Beauvais, France

AGCO RT100A Power
Engine:	128 hp 95.4 kW
PTO (claimed):	100 hp 74.6 kW
Drawbar (tested):	89.72 hp 66.9 kW
PTO (tested):	117.73 hp 87.8 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	hydraulic wet disc
Cab:	Cab standard.
Transmissions:	continuously variable transmission
32-speed partial power shift

Hydraulics
Type:	closed center PFC
Valves:	3 or 4
Pump flow:	29 gpm 109.8 lpm

Tractor hitch
Rear Type:	II, IIIN
Rear lift:	8,500 lbs 3855 kg
10,500 lbs 4762 kg CVT

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	120
Batteries:	2
Battery volts:	12

Engine Detail
Sisu
intercooled turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	402 ci 6.6 L
Bore/Stroke:	4.252x4.724 inches 108 x 120 mm
Power:	128 hp 95.4 kW
Air cleaner:	dual paper elements
Compression:	18.5:1
Rated RPM:	2200
Starter volts:	12

Dimensions
Wheelbase:	109.5 inches 278 cm
Operating weight:	15,100 lbs 6849 kg
Front tread:	61.2 to 89.1 inches 155 to 226 cm
Rear tread:	63.5 to 110.4 inches 161 to 280 cm
