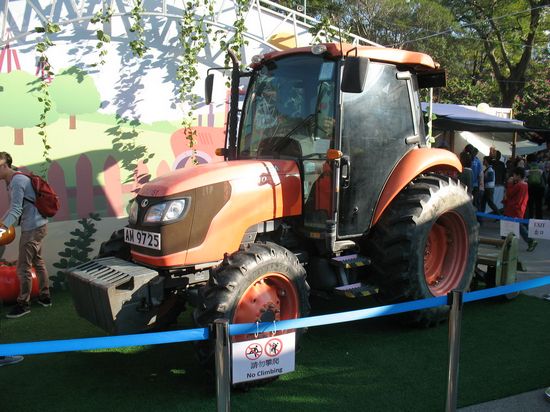

Kubota M7040
Type: Utility Tractors
Contents:
- Download Kubota M7040 Workshop Manual
- Download Kubota M7040 NARROW Workshop Manual
- Download Kubota M7040 Operator's Manual
- Download Kubota M7040 Operator's Manual
- Download Kubota M7040SUHD Operator's Manual
Production | |
| Manufacturer: | Kubota |
| Type: | Utility tractor |
Variants | |
| economy model | |
| narrow chassis | |
| M7040F: | 2WD ROPS sync-shuttle |
| M7040FC: | 2WD cab sync-shuttle |
| M7040DT: | 4WD ROPS sync-shuttle |
| M7040HD: | 4WD ROPS hyd-shuttle |
| M7040DTC: | 4WD cab sync-shuttle |
| M7040HDC: | 4WD cab hyd-shuttle |
Kubota M7040 Power | |
| Engine (net): | 67 hp 50.0 kW |
| PTO (claimed): | 62 hp 46.2 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Differential lock: | rear standard |
| Steering: | hydrostatic power |
| Brakes: | wet disc |
| Cab: | Two-post ROPS with optional canopy. Ultra Grand Cab optional with heat and air-conditioning |
| Transmissions: | 8-speed partially synchronized |
| 8-speed power shuttle | |
Capacity | |
| ROPS, 29.1 Cab} Fuel: | 18.5 gal 70.0 L |
| Hydraulic system: | 10.6 gal 40.1 L |
| Front axle: | 8.5 qts 8.0 L |
Hydraulics | |
| Type: | open center |
| Capacity: | 10.6 gal 40.1 L |
| Pressure: | 2770 psi 191.0 bar |
| Valves: | 1 to 3 |
| Pump flow: | 11 gpm 41.6 lpm |
| Total flow: | 17.2 gpm 65.1 lpm |
| Steering flow: | 6.1 gpm 23.1 lpm |
Tractor hitch | |
| Rear Type: | II |
| Rear lift (at ends): | 4,200 lbs 1905 kg |
| Rear lift (at 24"/610mm): | 3,307 lbs 1500 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 (1.375) |
| Engine RPM: | 540@2295 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 45 (ROPS) |
| 60 (cab) | |
| 80 (optional) | |
| Battery CCA: | 900 |
| Battery volts: | 12 |
Engine Detail | |
| Kubota V3307-DI | |
| diesel | |
| 4-cylinder | |
| liquid-cooled inline | |
| Displacement: | 203 ci 3.3 L |
| Bore/Stroke: | 3.70x4.70 inches 94 x 119 mm |
| Emissions: | Tier II |
| Air cleaner: | dry, dual element |
| Rated RPM: | 2600 |
| Starter volts: | 12 |
Dimensions | |
| Wheelbase: | 80.7 inches 204 cm (4WD ROPS) |
| 82.1 inches 208 cm (2WD ROPS) | |
| 83.1 inches 211 cm (4WD cab) | |
| 84.4 inches 214 cm (2WD cab) | |
| Length: | 142.7 inches 362 cm (2WD cab) |
| 140.4 inches 356 cm (2WD ROPS) | |
| 138 inches 350 cm (4WD cab) | |
| 135.6 inches 344 cm (4WD ROPS) | |
| Width: | 73.2 inches 185 cm |
| Height (ROPS): | 97.2 inches 246 cm |
| Height (cab): | 101.0 inches 256 cm |
| Ground clearance: | 16.9 inches 42 cm |
| Front tread: | 55.9 to 71.7 inches 141 to 182 cm (2WD) |
| Front tread: | 55.9 to 59.8 inches 141 to 151 cm (4WD) |
| Rear tread: | 52 to 67.7 inches 132 to 171 cm |
