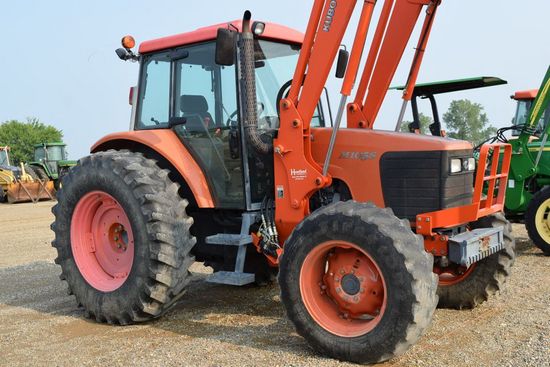

Kubota M105S

Production: 2005 - 2007

PDF

• Download Kubota M105S Workshop Manual

Production
Manufacturer:	Kubota
Type:	Utility tractor

Variants
IntelliShift
M105H:	2WD ROPS
M105HD:	4WD ROPS
M105DSF:	2WD ROPS
M105DS:	4WD ROPS

Kubota M105S Power
Engine (net):	105 hp 78.3 kW
PTO (claimed):	93 hp 69.4 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Brakes:	hydraulic wet disc
Cab:	Cab optional with heat and air-conditioning
Transmissions:	32-speed
48-speed
16-speed

Hydraulics
Type:	open center
Pressure:	2844 psi 196.1 bar
Valves:	1 to 3
Pump flow:	17.2 gpm 65.1 lpm

Tractor hitch
Rear Type:	II
Rear lift (at 24"/610mm):	4,630 lbs 2100 kg
7,490 lbs 3397 kg *Optional

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540
540/1000*Optional
Engine RPM:	540@2205

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	45 (ROPS)
60 (cab)
80*Optional
Battery volts:	12

Engine Detail
Kubota V3800-DI-TI
turbocharged intercooled diesel
4-cylinder 16-valve
liquid-cooled
Displacement:	230 ci 3.8 L
Bore/Stroke:	3.94x4.72 inches 100 x 120 mm
Air cleaner:	dry, dual element
Rated RPM:	2600
Starter volts:	12

Dimensions
Wheelbase:	95.9 inches 243 cm
Length:	162 inches 411 cm
Width:	79 inches 200 cm
Height (cab):	106 inches 269 cm
Ground clearance:	17.1 inches 43 cm
2WD Front tread:	60.6 to 80.3 inches 153 to 203 cm
4WD Front tread:	60.2 to 65.4 inches 152 to 166 cm
Rear tread:	60.2 to 80.1 inches 152 to 203 cm
