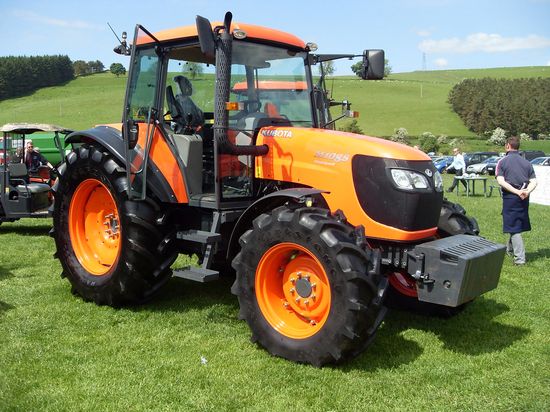

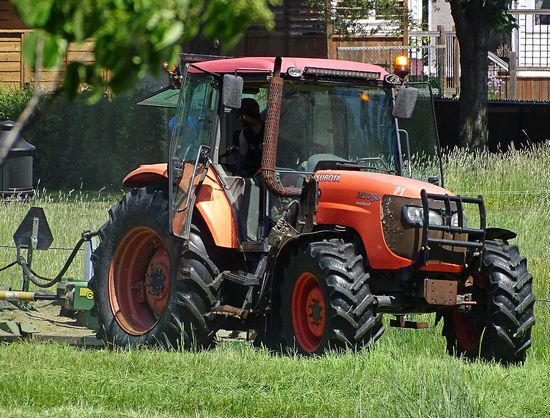

Kubota M108S
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Kubota |
| Type: | Row-Crop tractor |
| Original price: | $36,542 (2011) |
Variants | |
| Intelli-Shift | |
| low-profile | |
| M108SH: | 2WD ROPS 16-speed |
| M108SDSF: | 2WD ROPS 32-speed |
| M108SHD: | 4WD ROPS 16-speed |
| M108SDS: | 4WD ROPS 32-speed |
| M108SHC: | 2WD cab 16-speed |
| M108SHDC: | 4WD cab 16-speed |
| M108SDSC: | 4WD cab 32-speed |
Kubota M108S Power | |
| Engine (net): | 108 hp 80.5 kW |
| PTO (claimed): | 96 hp 71.6 kW |
| PTO (tested): | 103.17 hp 76.9 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Differential lock: | mechanical rear (2WD) or front-and-rear (4WD) |
| Steering: | hydrostatic power |
| Brakes: | hydraulic wet disc |
| Cab: | Two-post foldable ROPS. Cab with heat and air-conditioning optional. |
| Transmissions: | 16-speed partially synchronized |
| 32-speed partial power shift | |
| 24-speed partially synchronized | |
| 48-speed partial power shift | |
Capacity | |
| Fuel: | 46.2 gal 174.9 L |
| Hydraulic system: | 16.6 gal 62.8 L |
| Front axle: | 11.1 qts 10.5 L |
Hydraulics | |
| Type: | open center |
| Capacity: | 16.6 gal 62.8 L |
| Pressure: | 2844 psi 196.1 bar |
| Valves: | 1 to 3 |
| Pump flow: | 17.2 gpm 65.1 lpm |
| Total flow: | 29.3 gpm 110.9 lpm |
| Steering flow: | 12.1 gpm 45.8 lpm |
Tractor hitch | |
| Rear Type: | II |
| Rear lift (at ends): | 5,560 lbs 2522 kg |
| Rear lift (at 24"/610mm): | 4,630 lbs 2100 kg |
| 7,490 lbs 3397 kg (optional) | |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 (1.375) |
| 540/1000 (optional) | |
| Engine RPM: | 540@2205 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 45 (ROPS) |
| 80 (cab) | |
| Battery CCA: | 900 |
| Battery volts: | 12 |
| Battery Group: | negative |
Engine Detail | |
| Kubota V3800-DT-TI | |
| turbocharged intercooled diesel | |
| 4-cylinder 16-valve | |
| liquid-cooled | |
| Displacement: | 230 ci 3.8 L |
| Emissions: | Tier III |
| Emission control: | EGR |
| Air cleaner: | dual dry elements |
| Rated RPM: | 2600 |
| Starter: | electric |
| Starter volts: | 12 |
| Oil capacity: | 11.3 qts 10.7 L |
| Coolant capacity: | 9.6 qts 9.1 L |
Dimensions | |
| Width: | 90 inches 228 cm (2WD) |
| 91 inches 231 cm (4WD) | |
| Clearance (drawbar): | 17.1 inches 43 cm |
| Front tread: | 60.6 to 80.3 inches 153 to 203 cm (2WD) |
| Front tread: | 60.2 to 65.4 inches 152 to 166 cm (4WD) |
| Rear tread: | 67.1 to 79 inches 170 to 200 cm (2WD) |
| Rear tread: | 68.1 to 80.1 inches 172 to 203 cm (4WD) |
