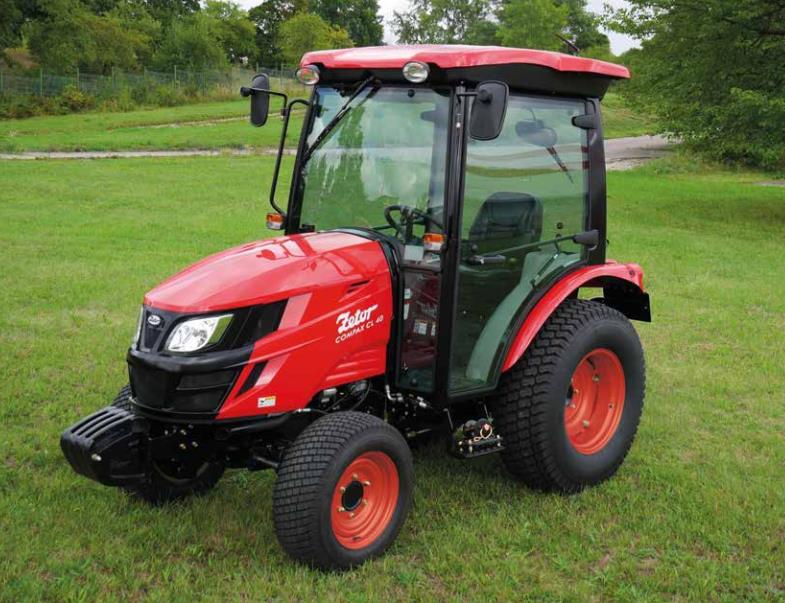

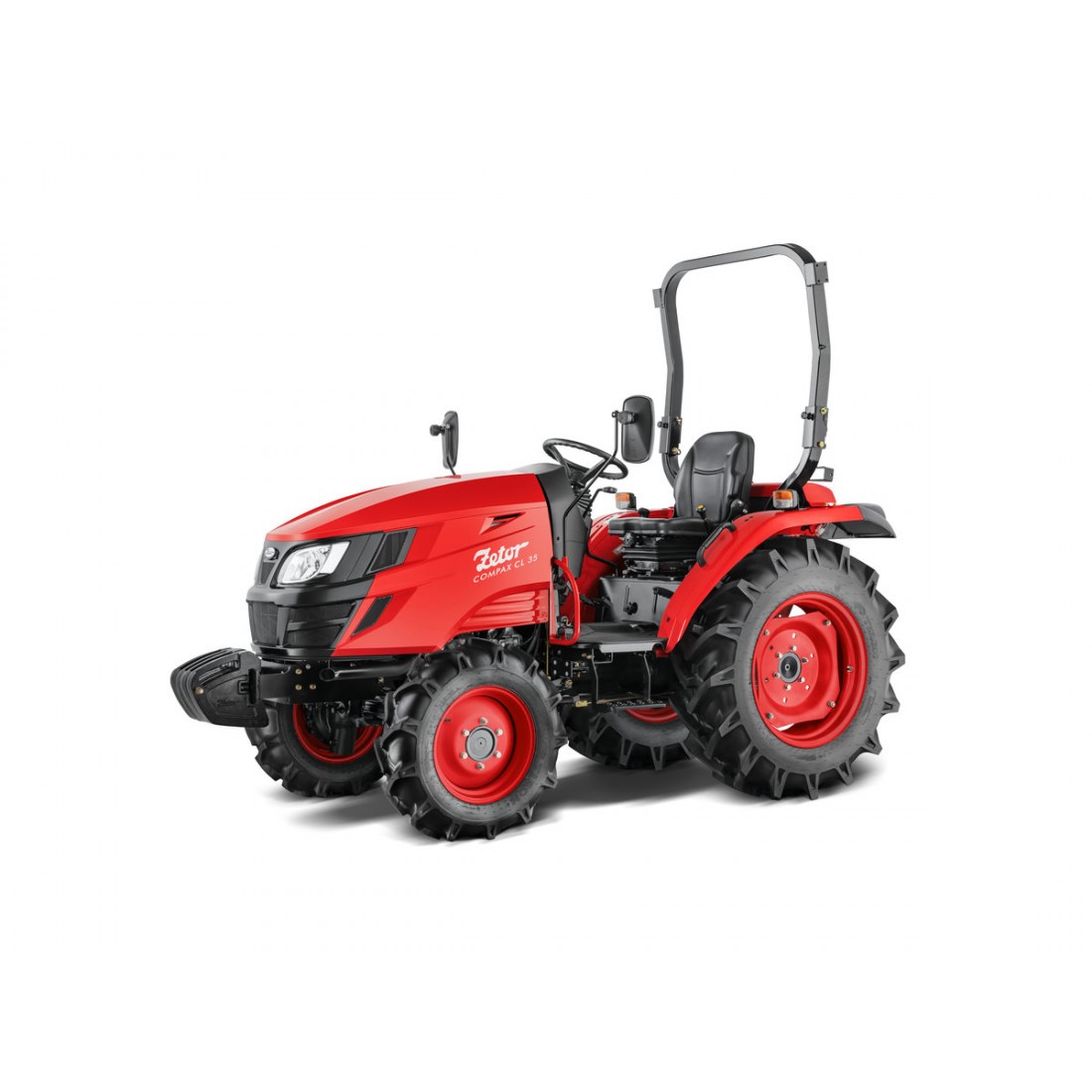

Zetor Compax 40

Production: 2020

Production
Distributor:	Zetor
Manufacturer:	TYM
Type:	Compact Utility tractor

Variants
CL 40:	gear
HT 40:	hydrostatic

Zetor Compax 40 Power
Engine (gross):	36.9 hp 27.5 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Cab:	Two-post folding ROPS. Cab optional.
Transmissions:	12-speed sync shuttle
hydrostatic

Hydraulics
Rear valves:	2
Mid valves:	2
Gear Pump flow:	10.6 gpm 40.1 lpm
Hydro Pump flow:	10.9 gpm 41.3 lpm

Tractor hitch
Rear Type:	I
Control:	position control
draft control*Optional
Rear lift:	2646 lbs 1200 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	electro-hydraulic
Rear RPM:	540
Mid PTO:	independent
Mid RPM:	2000

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Yanmar
diesel
liquid-cooled
Emissions:	Stage 5
Rated Power (2000/25/CE):	36.9 hp 27.5 kW
Starter:	electric
Starter volts:	12

Dimensions
ROPS gear Wheelbase:	64.6 inches 164 cm
Cab gear Wheelbase:	66.9 inches 169 cm
Hydro Wheelbase:	66.1 inches 167 cm
ROPS Length:	126 inches 320 cm
Cab Length:	128 inches 325 cm
ROPS Width:	53.5 inches 135 cm
Cab Width:	58.1 inches 147 cm
Height (ROPS):	94.5 inches 240 cm
Height (cab):	92.5 inches 234 cm
