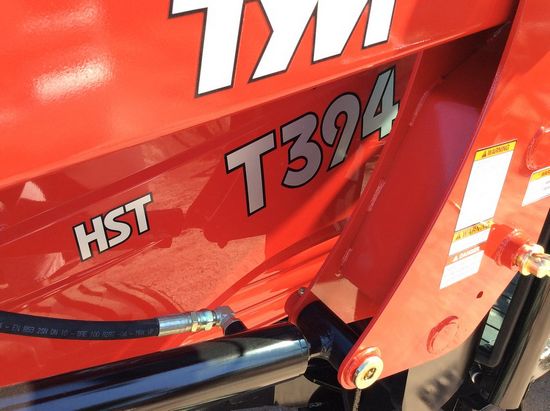

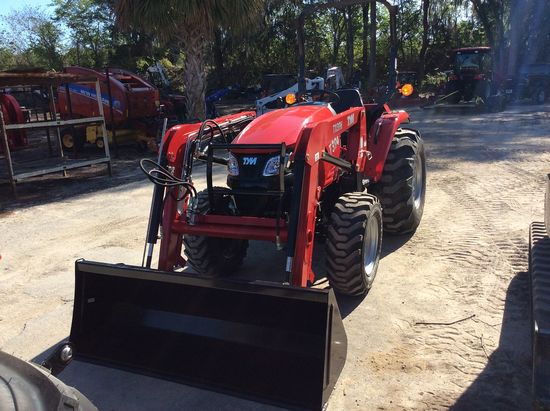

TYM T394

Production: 2016

Production
Manufacturer:	TYM
Type:	Compact Utility tractor

TYM T394 Power
Engine (gross):	37.4 hp 27.9 kW

Mechanical
Steering:	power
Brakes:	wet disc
Cab:	Two-post folding ROPS. Cab optional with air-conditioning.
Transmissions:	12-speed shuttle
hydrostatic

Hydraulics
Type:	open center
Pump flow:	6.4 gpm 24.2 lpm
Total flow:	11 gpm 41.6 lpm
Steering flow:	4.6 gpm 17.4 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift (at ends):	2646 lbs 1200 kg
Rear lift (at 24"/610mm):	1764 lbs 800 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540 (1.375)
Mid PTO:	independent
Mid RPM:	2000

Electrical
Ground:	negative
Charging amps:	55
Battery volts:	12

Engine Detail
Yanmar 3TNV88
diesel
3-cylinder
liquid-cooled
Displacement:	100.2 ci 1.6 L
Bore/Stroke:	3.46x3.54 inches 88 x 90 mm
Power (gross):	37.4 hp 27.9 kW
Fuel system:	common rail direct injection
Air cleaner:	dry
Rated RPM:	3000
Starter:	electric
Starter volts:	12
Oil capacity:	6 qts 5.7 L
Coolant capacity:	7.4 qts 7.0 L

Dimensions
Wheelbase:	66.1 inches 167 cm
Length:	126 inches 320 cm
Width:	53.5 inches 135 cm
Height (ROPS):	94.4 inches 239 cm
Weight:	3020 lbs 1369 kg
Ground clearance:	12.8 inches 32 cm
