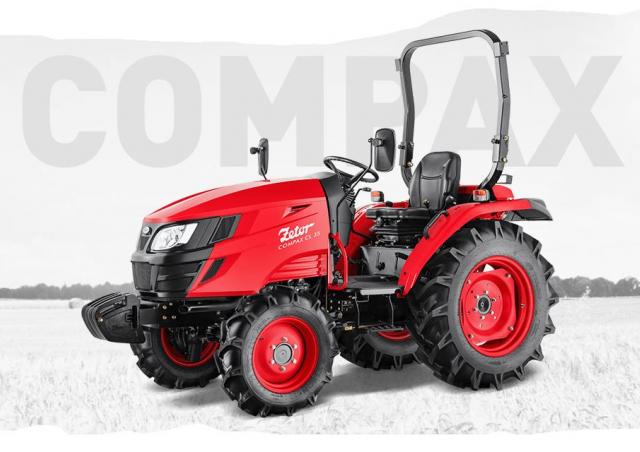

Zetor Compax 25

Production: 2020

Production
Distributor:	Zetor
Manufacturer:	TYM
Type:	Compact Utility tractor

Variants
CL 25:	gear
HT 25:	hydrostatic

Zetor Compax 25 Power
Engine (gross):	23.3 hp 17.4 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Cab:	Two-post folding ROPS.
Transmissions:	6-speed sync shuttle
hydrostatic

Hydraulics
Rear valves:	2
Pump flow:	7 gpm 26.5 lpm

Tractor hitch
Rear Type:	IN
Control:	position control
Rear lift:	1323 lbs 600 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	electro-hydraulic
Rear RPM:	540
Mid PTO:	independent
Mid RPM:	2000

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Yanmar
diesel
liquid-cooled
Emissions:	Stage 5
Rated Power (2000/25/CE):	23.3 hp 17.4 kW
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	57.5 inches 146 cm
Length:	100.5 inches 255 cm
Width:	45.8 inches 116 cm
Height (ROPS):	91.3 inches 231 cm
