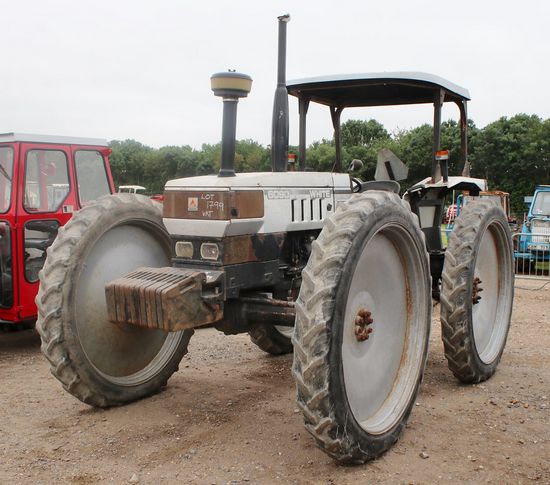

White 6090

Production: 1992 - 1997

Production
Distributor:	White (a part of AGCO)
Manufacturer:	SAME
Type:	High-Clearance tractor

White 6090 Power
PTO (claimed):	80 hp 59.7 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Brakes:	hydraulic wet disc
Cab:	Four-post ROPS.
Transmission:	20-speed synchromesh

Capacity
Fuel:	22.5 gal 85.2 L
Hydraulic system:	17.2 gal 65.1 L

Hydraulics
Type:	open center
Capacity:	17.2 gal 65.1 L
Pressure:	2610 psi 180.0 bar
Valves:	1 or 2
Pump flow:	15.8 gpm 59.8 lpm
Total flow:	21.8 gpm 82.5 lpm

Tractor hitch
Rear Type:	II/I
Rear lift (at 24"/610mm):	6437 lbs 2919 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	hydraulic wet disc
Rear RPM:	540/1000

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
SLH 1000.4-WT
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	244 ci 4.0 L
Bore/Stroke:	4.13x4.55 inches 105 x 116 mm
Fuel system:	direct injection
Compression:	17.1:1
Rated RPM:	2500
Starter:	electric
Starter volts:	12

Transmission
Type:	synchromesh
Gears:	20 forward and reverse
Clutch:	dry disc

Dimensions
Wheelbase:	90.6 inches 230 cm
Length:	169.3 inches 430 cm
Width:	80.5 inches 204 cm *Minimum
Height:	101.2 inches 257 cm
Shiping weight:	7831 lbs 3552 kg
2WD Clearance (front axle):	28 inches 71 cm
4WD Clearance (front axle):	23.2 inches 58 cm
Clearance (rear axle):	33 inches 83 cm
Clearance (drawbar):	21.7 inches 55 cm
