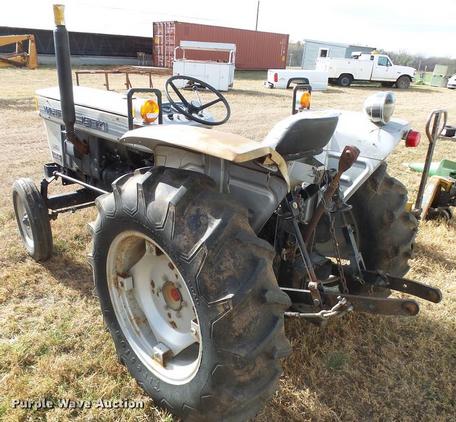

White 2-30 Field Boss

Production: 1979 - 1984

Production
Distributor:	White
Manufacturer:	Iseki
Type:	Compact Utility tractor
Factory:	Japan
Original price:	$10,000 (1984 )

White 2-30 Power
PTO (claimed):	27 hp 20.1 kW
Drawbar (tested):	24.88 hp 18.6 kW
PTO (tested):	28.33 hp 21.1 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	manual
Brakes:	mechanical drum
Cab:	Two-post ROPS.
Transmission:	8-speed gear

Tractor hitch
Rear Type:	I

Power Take-off (PTO)
Rear PTO:	live (2-stage clutch)
Rear RPM:	540 (1.375)
Engine RPM:	540@2176

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Isuzu
diesel
3-cylinder
liquid-cooled
Displacement:	91.4 ci 1.5 L
Bore/Stroke:	3.39x3.39 inches 86 x 86 mm
Air cleaner:	dry
Compression:	20:1
Rated RPM:	2600
Starter volts:	12

Transmission
Type:	gear
Gears:	8 forward and 2 reverse
Clutch:	dry disc
Four gears (1-4) in two ranges (low/high).

Dimensions
Wheelbase:	68.9 inches 175 cm
Width:	68 inches 172 cm
Shiping weight:	2700 lbs 1224 kg
Operating weight:	2950 lbs 1338 kg
Rear tread:	53.3 to 59.1 inches 135 to 150 cm
