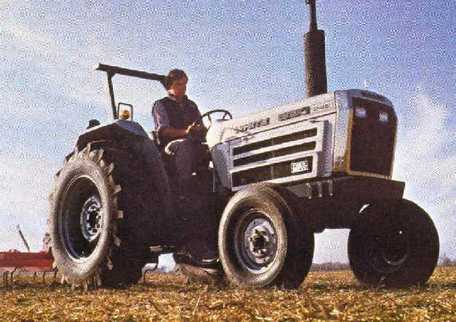

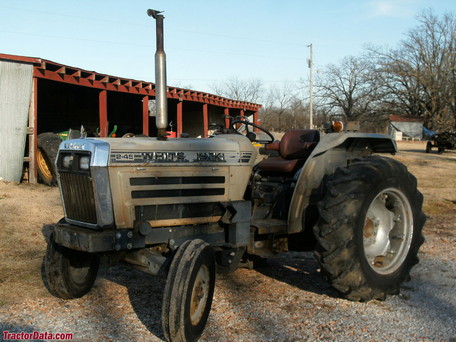

White 2-45 Field Boss
Type: Utility Tractors
Contents:
Production | |
| Distributor: | White |
| Manufacturer: | Iseki |
| Type: | Utility tractor |
| Factory: | Japan |
| Original price: | $15,000 (1981 ) |
White 2-45 Power | |
| Engine: | 47.3 hp 35.3 kW |
| PTO (claimed): | 43 hp 32.1 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Final drives: | inboard planetary |
| Differential lock: | mechanical rear |
| Steering: | power |
| Brakes: | wet disc |
| Cab: | Four-post ROPS. Cab available with heater. |
| Transmission: | 20-speed gear |
Hydraulics | |
| Type: | open center |
| Steering flow: | 8 gpm 30.3 lpm |
Tractor hitch | |
| Rear Type: | II |
| Control: | position and draft control |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | hydraulic |
| Rear RPM: | 540 (1.375) |
| Engine RPM: | 540@1814 869@2250 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 30 |
| Batteries: | 2 |
| Battery volts: | 12 |
| Battery AH: | 80 |
Engine Detail | |
| Isuzu 4BA1 | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 169.3 ci 2.8 L |
| Bore/Stroke: | 3.858x3.622 inches 98 x 92 mm |
| Power: | 47.3 hp 35.3 kW |
| Air cleaner: | dry with pre-cleaner |
| Compression: | 19:1 |
| Rated RPM: | 2250 |
| Starter volts: | 12 |
Transmission | |
| Type: | gear |
| Gears: | 20 forward and 4 reverse |
| Clutch: | 275mm dry disc |
| Five gears (1-5), plus reverse (R), in two ranges with additional creeper range. | |
Dimensions | |
| 2WD Wheelbase: | 78.7 inches 199 cm |
| 4WD Wheelbase: | 80.1 inches 203 cm |
| Length: | 137.4 inches 348 cm |
| Width: | 72.1 inches 183 cm |
| Height: | 94.7 inches 240 cm |
| 2WD Weight: | 5214 lbs 2365 kg |
| 4WD Weight: | 5721 lbs 2595 kg |
| 2WD Ground clearance: | 13 inches 33 cm |
| 4WD Ground clearance: | 12.4 inches 31 cm |
| 2WD Front tread: | 52 to 75.6 inches 132 to 192 cm |
| 4WD Front tread: | 59.1 inches 150 cm |
| Rear tread: | 55.5 to 79.5 inches 140 to 201 cm |
