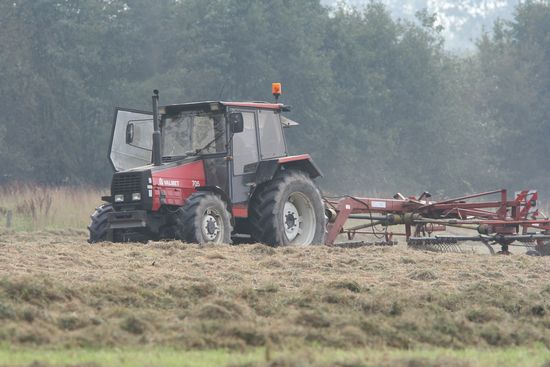

Valmet 705

Production: 1982 - 1991

Production
Manufacturer:	Valmet
Type:	Row-Crop tractor

Valmet 705 Power
Engine:	85 hp 63.4 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Differential lock:	electro-hydraulic rear
Steering:	power
Brakes:	hydraulic wet disc
Cab:	Cab standard. Optional air-conditioning.
Transmissions:	8-speed synchromesh
16-speed two-speed power shift

Hydraulics
Pressure:	2611 psi 180.0 bar
Pump flow:	12.7 gpm 48.1 lpm

Tractor hitch
Rear lift:	9892 lbs 4487 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	65
Battery volts:	12
Battery AH:	150

Engine Detail
Valmet TD44DS7
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	268.5 ci 4.4 L
Bore/Stroke:	4.252x4.724 inches 108 x 120 mm
Power:	85 hp 63.4 kW
Fuel system:	direct injection
Pre-heating:	intake air heater
Compression:	16:1
Rated RPM:	2100
Starter:	electric
Starter volts:	12
Starter power:	4 hp 3.0 kW

Dimensions
2WD Wheelbase:	93.9 inches 238 cm
4WD Wheelbase:	91.6 inches 232 cm
Length:	177.8 inches 451 cm
Width:	85.8 inches 217 cm
Height:	106.5 inches 270 cm
2WD Weight:	8179 lbs 3709 kg
4WD Weight:	8885 lbs 4030 kg
Ground clearance:	18.7 inches 47 cm
