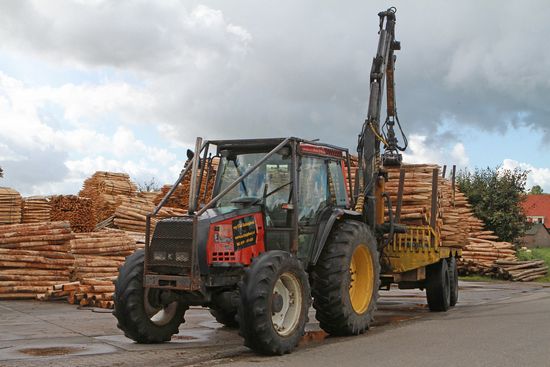

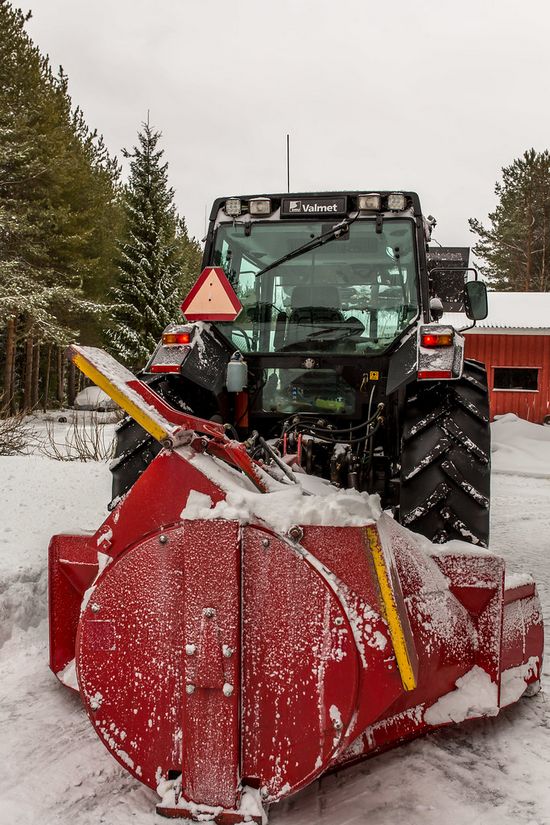

Valmet 6600

Production: 1991 - 2000

Production
Manufacturer:	Valmet
Type:	Row-Crop tractor

Valmet 6600 Power
Engine:	103.3 hp 77.0 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Cab standard with optional air-conditioning.
Transmissions:	24-speed two-speed power shift
36-speed three-speed power shift

Hydraulics
Pump flow:	18.5 gpm 70.0 lpm

Tractor hitch
Rear Type:	II
Rear lift:	12125 lbs 5499 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000
Engine RPM:	540@1874 1000@2080

Electrical
Ground:	negative
Charging system:	alternator
Battery volts:	12
Battery AH:	150

Engine Detail
SisuDiesel 420 DS
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	268.4 ci 4.4 L
Bore/Stroke:	4.252x4.724 inches 108 x 120 mm
Power:	103.3 hp 77.0 kW
Compression:	16.5:1
Rated RPM:	2225
Torque:	298.7 lb-ft 405.0 Nm
Torque RPM:	1550
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	91.6 inches 232 cm
Length:	174.2 inches 442 cm
Height (cab):	108.3 inches 275 cm
Height (exhaust):	110.8 inches 281 cm
Weight:	9700 lbs 4399 kg
Clearance (front axle):	20.1 inches 51 cm
Clearance (rear axle):	19.1 inches 48 cm
