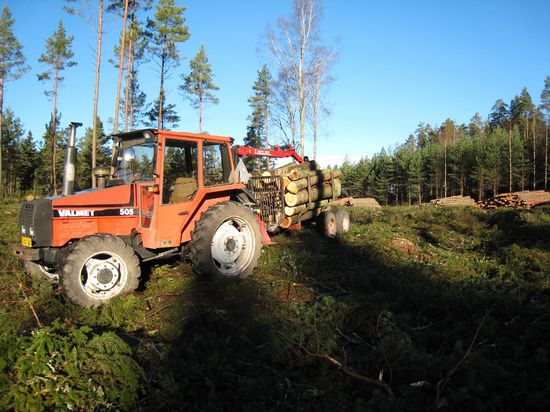

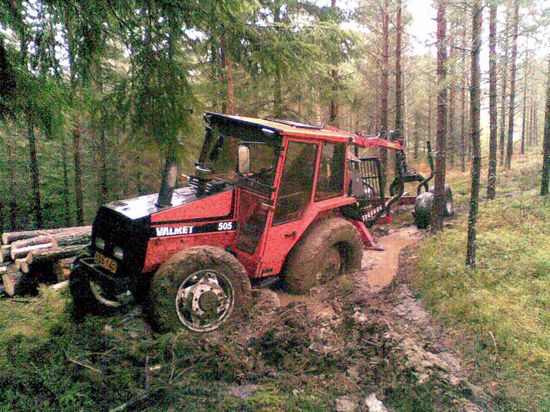

Valmet 505

Production: 1982 - 1991

Production
Manufacturer:	Valmet
Type:	Row-Crop tractor

Valmet 505 Power
Engine:	65 hp 48.5 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Differential lock:	electro-hydraulic rear
Steering:	power
Brakes:	hydraulic wet disc
Cab:	Cab standard. Optional air-conditioning.
Transmissions:	8-speed synchromesh
16-speed two-speed power shift

Hydraulics
Pressure:	2611 psi 180.0 bar
Pump flow:	12.7 gpm 48.1 lpm

Tractor hitch
Rear lift:	9892 lbs 4487 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	65
Battery volts:	12
Battery AH:	150

Engine Detail
Valmet TD33DS5
turbocharged diesel
3-cylinder
liquid-cooled
Displacement:	201.4 ci 3.3 L
Bore/Stroke:	4.252x4.724 inches 108 x 120 mm
Power:	65 hp 48.5 kW
Fuel system:	direct injection
Pre-heating:	intake air heater
Compression:	16:1
Rated RPM:	2250
Starter:	electric
Starter volts:	12
Starter power:	4 hp 3.0 kW

Dimensions
2WD Wheelbase:	92.9 inches 235 cm
4WD Wheelbase:	90.6 inches 230 cm
Length:	172.8 inches 438 cm
Width:	77.2 inches 196 cm
Height:	105.1 inches 266 cm
2WD Weight:	7760 lbs 3519 kg
4WD Weight:	8488 lbs 3850 kg
Ground clearance:	17.3 inches 43 cm
