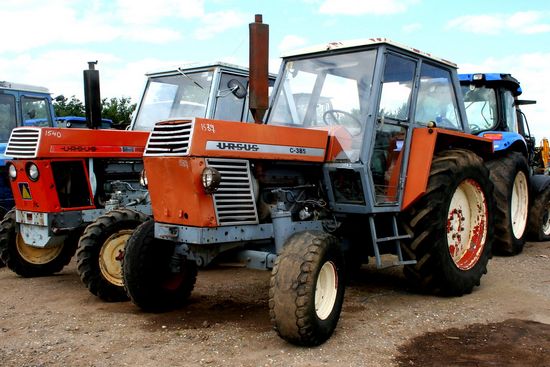

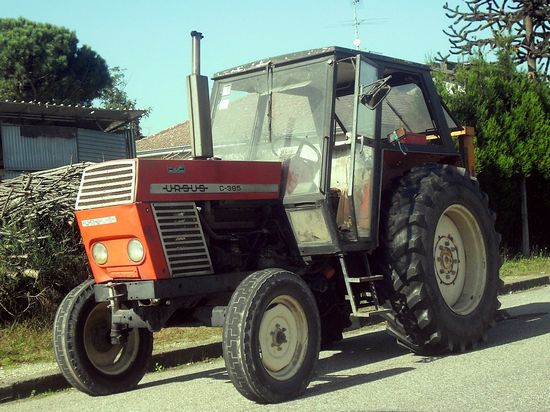

Ursus C-385

Production: 1972 - 1983

Production
Manufacturer:	Ursus

Variants
C-385:	2WD
C-385A:	4WD

Ursus C-385 Power
Engine:	85 hp 63.4 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power assist
Brakes:	differential hydraulic disc
Transmission:	16-speed partial power shift

Hydraulics
Pump flow:	9.2 gpm 34.8 lpm

Power Take-off (PTO)
Rear RPM:	540/1000

Engine Detail
Z-7501
diesel
4-cylinder
liquid-cooled
Displacement:	279.4 ci 4.6 L
Bore/Stroke:	4.33x4.72 inches 110 x 120 mm
Power:	85 hp 63.4 kW
Air cleaner:	dry two stage
Compression:	17:1
Rated RPM:	2200
Torque:	197.7 lb-ft 268.1 Nm
Torque RPM:	1130

Transmission
Type:	partial power shift
Gears:	16 forward and 8 reverse
A 8-forward and 4-reverse gearbox with a torque amplifier style power shift that doubles the available speeds.

Dimensions
Wheelbase:	93.9 inches 238 cm
Length:	155.3 inches 394 cm
Width:	76 inches 193 cm
Height (cab):	97.8 inches 248 cm
2WD cab Weight:	9943 lbs 4510 kg
4WD cab Weight:	10910 lbs 4948 kg
Ground clearance:	16.5 inches 41 cm
