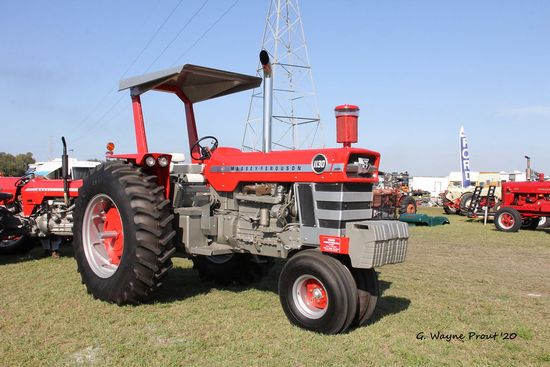

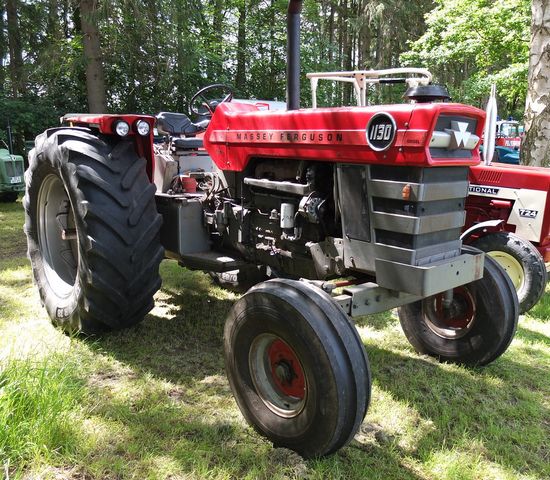

Massey Ferguson 1130

Production: 1964 - 1972

Production
Manufacturer:	Massey Ferguson
Type:	Row-Crop tractor
Original price:	$11,500 (1972)

Massey Ferguson 1130 Power
Drawbar (claimed):	106 hp 79.0 kW
PTO (claimed):	121 hp 90.2 kW
Drawbar (tested):	106.91 hp 79.7 kW
PTO (tested):	120.51 hp 89.9 kW

Mechanical
Chassis:	4x2 2WD
Steering:	power assist
Brakes:	hydraulic disc
Cab:	Open operator station. Cab optional.
Transmission:	12-speed two-speed power shift

Hydraulics
Valves:	1
Pump flow:	20 gpm 75.7 lpm

Tractor hitch
Rear Type:	II

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000

1130 Serial Numbers
Location:	Ahead of transmission on right side.
1965:	651500022
1966:	651500082
1967:	651501613
1967:	9B10001
1968:	9B14693
1969:	9B18673
1970:	9B23486
1971:	9B28238
1972:	9B31959

Engine Detail
Perkins
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	354 ci 5.8 L
Bore/Stroke:	3.875x5.00 inches 98 x 127 mm
Air cleaner:	dry
Rated RPM:	2200
Starter volts:	12

Transmission
Transmission:	Multi-Power
Type:	two-speed power shift
Gears:	12 forward and 4 reverse
Clutch:	dry disc
Three gears in two ranges with two-speed Multi-Power power shift.

Dimensions
Operating weight:	13560 lbs 6150 kg
Ballasted weight:	18460 lbs 8373 kg
