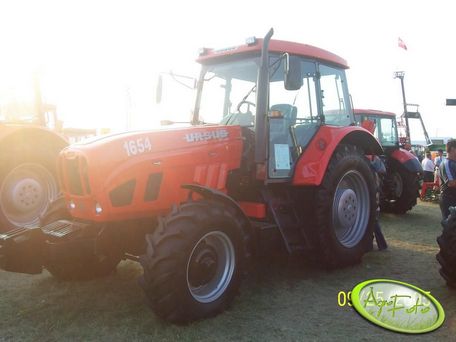

Ursus 1654

Production: 2006 - 2009

Production
Manufacturer:	Ursus
Factory:	Warsaw, Poland

Ursus 1654 Power
Engine:	158.2 hp 118.0 kW
PTO (claimed):	139.5 hp 104.0 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	dry disc
Cab:	Cab standard with heat.
Transmission:	16-speed two-speed power shift

Hydraulics
Pump flow:	14.5 gpm 54.9 lpm

Tractor hitch
Rear Type:	II
III*Optional
Rear lift:	14771 lbs 6700 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	hydraulic

Electrical
Charging system:	alternator

Engine Detail
Zetor Z 8604.035
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	445.4 ci 7.3 L
Bore/Stroke:	4.33x5.04 inches 110 x 128 mm
Power:	158.2 hp 118.0 kW
Fuel system:	direct injection
Rated RPM:	2200
Torque:	492 lb-ft 667.2 Nm
Starter type:	electric

Transmission
Type:	two-speed power shift
Gears:	16 forward and 8 reverse
Four gears (1-4) in two ranges (I/II) plus reverse range (R) with two-speed power shift.

Dimensions
Wheelbase:	106.5 inches 270 cm
Length:	177 inches 449 cm
Weight:	13051 lbs 5919 kg
Ballasted weight:	15675 lbs 7110 kg
Ground clearance:	19.1 inches 48 cm
