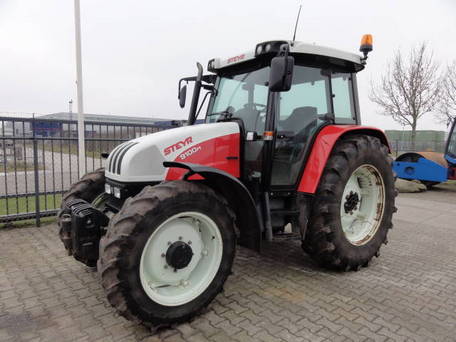

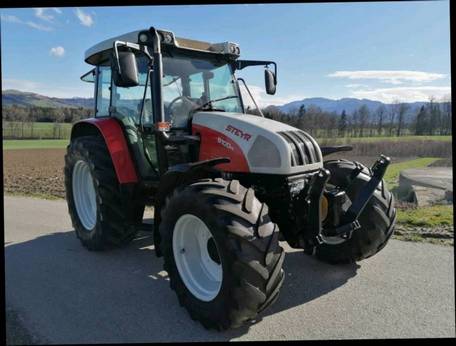

Steyr 9100M

Production: 2003 - 2007

Production
Manufacturer:	Steyr
Type:	Utility tractor

Steyr 9100M Power
Engine:	97 hp 72.3 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Supercomfort cab
Transmissions:	16-speed
32-speed

Hydraulics
Pressure:	2538 psi 175.0 bar
Valves:	4
Total flow:	13.2 gpm 50.0 lpm
22.7 gpm 85.9 lpm *Optional

Tractor hitch
Rear lift:	10,800 lbs 4898 kg
Front lift:	6,698 lbs 3038 kg

Power Take-off (PTO)
Rear RPM:	430/540/540E/1000
Front RPM:	1000

Electrical
Ground:	negative
Charging system:	alternator
Battery volts:	12

Engine Detail
Sisu 44DT
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	268.3 ci 4.4 L
Bore/Stroke:	4.25x4.72 inches 108 x 120 mm
Power:	97 hp 72.3 kW
Rated RPM:	2300
Torque:	270.7 lb-ft 367.1 Nm
Torque RPM:	1400
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	97.7 inches 248 cm
Length:	165.9 inches 421 cm
Width:	85.4 inches 216 cm
Height:	106 inches 269 cm
Weight:	8,708 lbs 3949 kg
